Description

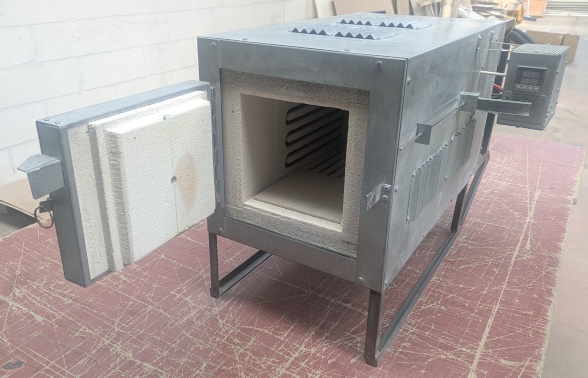

THIS IS A USEFUL ELECTRIC MUFFLE KILN WITH A STANDARD P.I.D. TEMPERATURE CONTROLLER AND 20 CUBIC LITRE SPACIOUS CHAMBER THAT IS ESPECIALLY DESIGNED FOR WORKING WITH ALL TYPES OF MATERIALS ON TEMPERATURES BELOW 1300 C (2372 F) AND CAN BE USED IN HORIZONTAL AS WELL AS IN VERTICAL POSITION. FOUR HEATING ELEMENTS. FOR YOUR SAFETY THIS KILN HAVE A SECURE MECHANISM THAT WILL DISCONNECT THE KILN’S POWER SUPPLY FROM ITS HEATING ELEMENT/S IF DOOR OF THE KILN IS OPEN OR CLOSED NOT PROPERLY. IT HAS ONE 16-MM HOLE WITH A STAINLESS STEEL SHUTTER ON THE DOOR TO SEE FIRING OBJECT/S DURING ALL FIRING PROCESS. THIS KILN HAS ALSO A DIGITAL, OVER/LOW-TEMPERATURE REGULATION SECURE SYSTEM TO HOLD SAME TEMPERATURE DURING THE WHOLE SOAKING PROCESS AND A SMOOTHING CIRCUIT DIGITAL GUARD FOR ACCURATE READING AND STABILITY WORK OF THE TEMPERATURE CONTROLLER ON FLUCTUATIONS OF ELECTRICITY THAT IS VERY IMPORTANT OPTION FOR MOST PROFESSIONAL FIRING PROCESSES.

GOOD CONDITION. IN FULLY WORKING ORDER. REAL PHOTOS.

Technical specification:

– Brand name: Technical Supermarket;
– Model: NAUTILUS-1300C-U;
– Single phase, 230 Vac +/-10%. Supplied without electrical plug – shuld be connected by separate line to a 20A fuse in mains electrical box.
– 3950 Watt;
– No asbestos at all;
– Can be used in Horizontal or Vertical position;
– Maximum working temperature – 1300 C (2372 F);
– Heating time to 1300 C – 180 minutes;
– Continuously working time on top temperatures – 15 minutes;
– Continuously working time on temperatures below 1000 C – 24 hours;
– Kiln dimensions in CM (inch): H38 x W46 x L80 (15″ x 18″ x 31″);
– Chamber dimensions in CM (inch): H20 x W20 x L50 (8″ x 8″ x 20″);
– Chamber volume: 20 L;
– P.I.D. temperature controller that will allows you to preset, reach as soon as possible and hold (soak) any required temperature as long as you need.
– One year free Teams, ZOOM or WhatsApp help on controller’s re-programming and/or re-setting;
– Safety switch mechanism for disconnecting heating elements from a power supply if door is open or closed not properly;

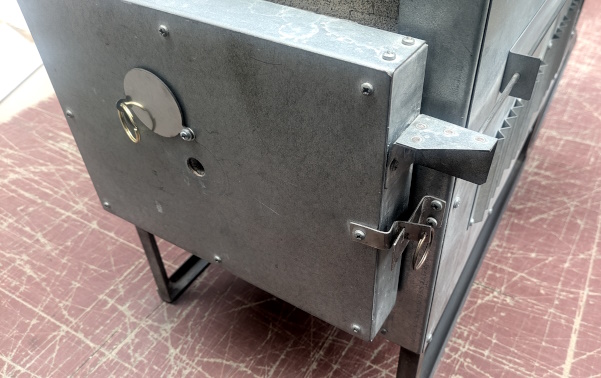

– One ventilation hole with stainless steel shutter on the door;
– FOUR heating elements: TOP, BOTTOM, LEFT AND RIGHT;
– Four ceramic triangle bottom plates for covering bottom heating element;
– In-build metal stands for both, horizontal and vertical positions;
– Digital over/low-temperature regulation secure system;
– Smoothing circuit (stability work control) digital guard;
– Industrial graded K-thermocouple on right wall of the kiln (3-mm wires);
– Calibrated in 5 points;
– Estimated accuracy of SOAKING temperature: +/- 1 C;
– If not already fitted you will require a standard screw-driver to fix electrical box with temperature controller, thermocouple and safety switch’s mechanism of this kiln by few screws (supplied).
– Weight – 70 kg on a pallet;
– Cable – 3 M.
– Made in UK.

Delivery specification:

– The used NAUTILUS-1300C electric muffle kiln;
– Industrial graded K-thermocouple;
– Safety switch mechanism;
– Four ceramic traingle bottom plate for covering bottom heating element;
– Electrical box with a P.I.D. temperature controller and a secure switch;
– Downloadable User Manuals;
– 6 months manufacturer warranty with professional after-selling services include warranty, parts-by-post worldwide and online help by email or/and on Zoom, Teams or on WhatsApp.
