Description

This electric programmable table-top kiln for small pieces is suitable for both individual and professional use. It is the perfect choice for workshops which need a small, affordable compact kiln to fire small objects on a large scale at a time. It is ideal for Glass, Clay, PMC, Stones and any other material with the required firing temperature of up to 1100C/2012F.

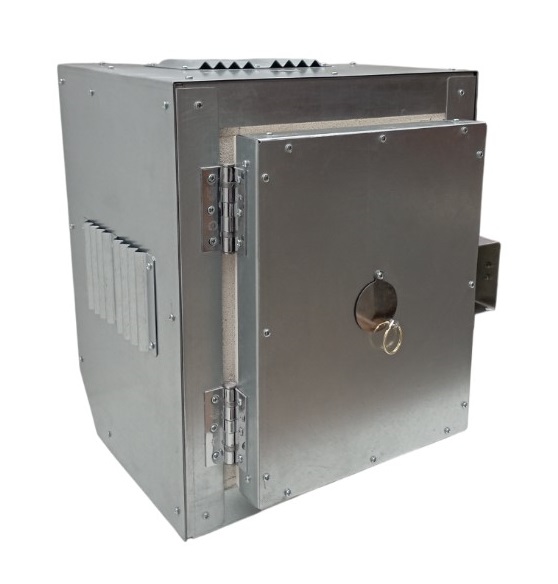

Whether you’re a hobbyist or a seasoned professional, this small kiln is a canvas for your imagination. This 1100°C/2012F front-loading kiln, with firing chamber volume 12 cubic litres comes with the set of 7 ceramic plates and 8 spacers, each spacer is 25mm high, You can make several different combinations depending on the size of the objects you need to fire. Each ceramic shelf can be rotated in any direction by using the tongs. In case you need to utilize the whole volume of the chamber to fire a large object, the shelves with the tube can be removed completely and the hole on the top of the kiln covered with a small ceramic cover. The kiln’s door opens 90°, there is a 16-mm ventilation hole with a stainless steel shutter on the door for the ventilation purpose and through which you can also see firing object/s during all firing process.

The Kiln is equipped with digital programmable time/temperature controller with 32 segments (steps), that will allow you to regulate heating and cooling speed between any required temperatures. It also has a digital, over/low-temperature regulation secure system to hold same temperature during the whole soaking process and a smoothing circuit digital guard for accurate reading and stable work of the temperature controller on fluctuations of electricity that is very important option for most professional firing processes.

Detailed Technical specification:

– Brand name: Technical Super Market;
– Model: R14-XLV;
– CE , FCC, UKCA marked, ISO-9001-2008;
– 115 or 230 Vac +/-10% with a standard EU, UK, AU, US electrical plug on request;
– Single phase, 7 A;
– 1600 Watt;
– No asbestos at all;
– Maximum working temperature – 1100 C (2012 F);
– Heating time to temperatures higher than 1000 C – 60-90 minutes. Save your electricity;
– Continuously working time on temperatures higher than 1000 C = 8 hours. Below 1000 C = 24 hours.
– External Kiln dimensions in MM/CM (inch): L480/48 x W350/35 x H43043 (19″ x 14″ x 17″);

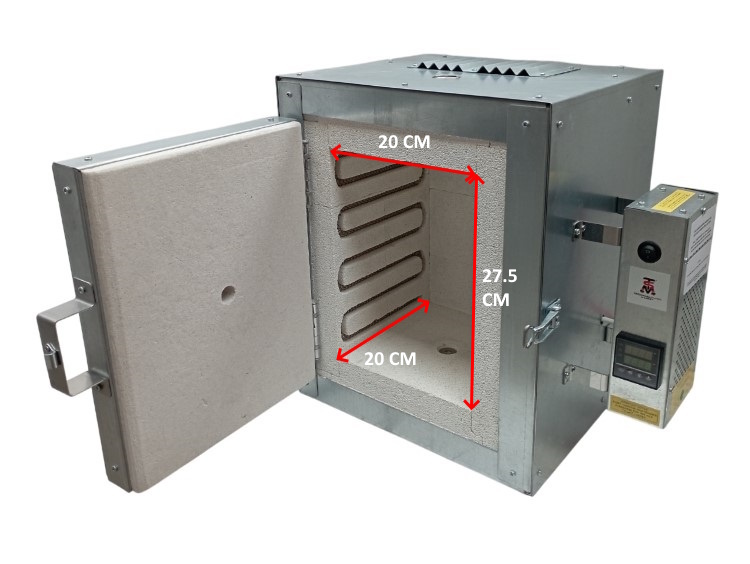

– Chamber dimensions in MM/CM (inch): L200/20 x W200/20 x H275/27.5 (8″ x 8″ x 11″)
– Firing Chamber volume: 12 cubic litres;

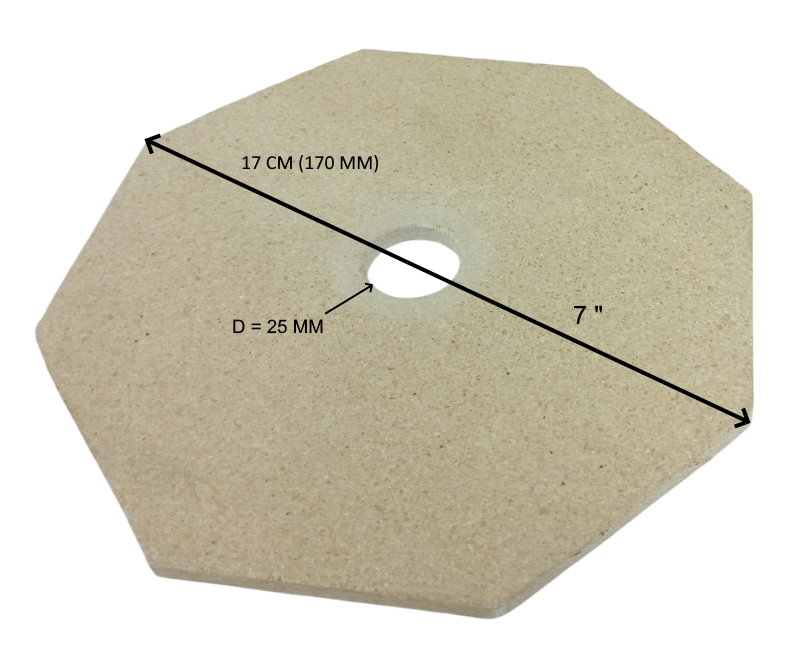

– Estimated diameter of each shelf is 18 cm (7″);
– Estimated height of each spacer is 2.5 cm (1″);
– 32 time/temperature segments on 2-line programmable temperature controller that will allow you to automatically reach, hold (soak) and change up to 32 temperature/time points (for regulating the heating and cooling speed)
– One year free WA & ZOOM help on assembling and programming;
– One ventilation hole with stainless steel shutter on the door;
– Positions of two heating elements: right and left;
– Digital over/low-temperature regulation secure system;
– Smoothing circuit (stability work control) digital guard;
– Industrial graded K-thermocouple on right wall of the kiln;
– Calibrated on five points: 100 C; 240 C; 450 C; 830 C and 1075 C;
– Estimated accuracy of SOAKING temperature: +/- 1 C;
– You will require a standard screw-driver to fix electrical box with temperature controller, thermocouple and safety switch’s mechanism of this kiln by few screws (supplied).
– Weight – 33 Kg (37 KG in a wooden box);
– Cable – 2.5 M;
– MADE IN UK.

WHY YOU MAY WANT TO BUY OUR PRODUCT (Table-top Kiln for small pieces)

Buying directly from the manufacture you have the guaranty of the best price. Our customers are also provided with full range of after-sale service for the equipment and accessories bought from us including delivery, installation by our engineers, warranty, maintenance, parts, materials.

Please feel free to contact us in case you require non-standard custom size & design. You can also visit our other websites to find out more information.

Delivery specification:

– The R14-XLV electric programmable table-top kiln for small pieces;
– K-thermocouple;
– Control box with a programmable controller;

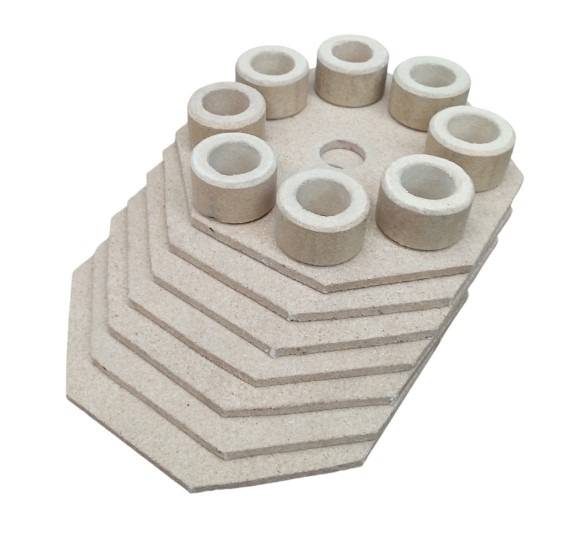

– 7 ceramic shelves with 8 spacers;
– Downloadable User Manuals (PDF);
– One year manufacturer warranty.
