Description

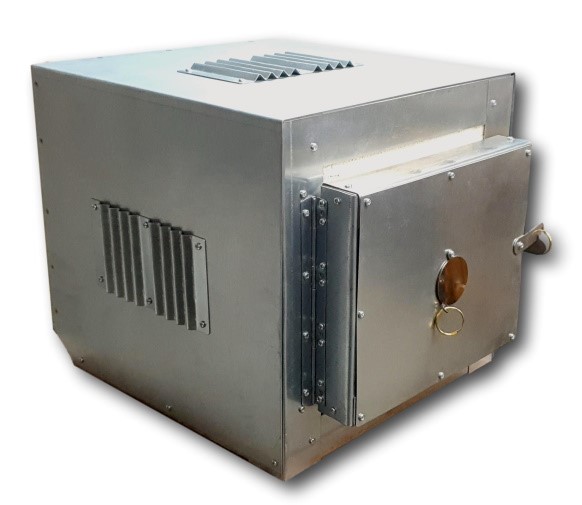

The R-1300-TS model kiln is one of our most versatile and popular Wi-Fi programmable electric muffle kilns. It features a 24-segment programmable temperature/time controller with a responsive touch screen and a spacious 11.5-litre chamber. The kiln is specially designed for firing a wide range of materials, including glass, hot enamels, ceramics, pottery, metals, and many other materials requiring temperatures of up to 1300°C (2372°F).

For enhanced safety, the kiln is equipped with a door safety interlock that automatically disconnects power to the heating elements whenever the door is opened or not properly closed. The door also features a 16 mm viewing port with a stainless steel shutter, allowing the firing process to be monitored without opening the kiln.

For precise and reliable operation, the kiln incorporates a digital over-temperature and under-temperature regulation system that maintains a stable temperature throughout the entire soaking period. It is also equipped with a digital smoothing circuit that protects the programmable controller from fluctuations in the electrical supply, ensuring accurate temperature readings and stable controller performance. This feature is particularly important for professional firing applications where precise temperature control is essential for achieving consistent, repeatable results.

Technical specification on the kiln:

– Brand name: Technical Super Market (London);
– Model (SKU): R-1300-TS;
– CE marked, ISO-9001-2008;

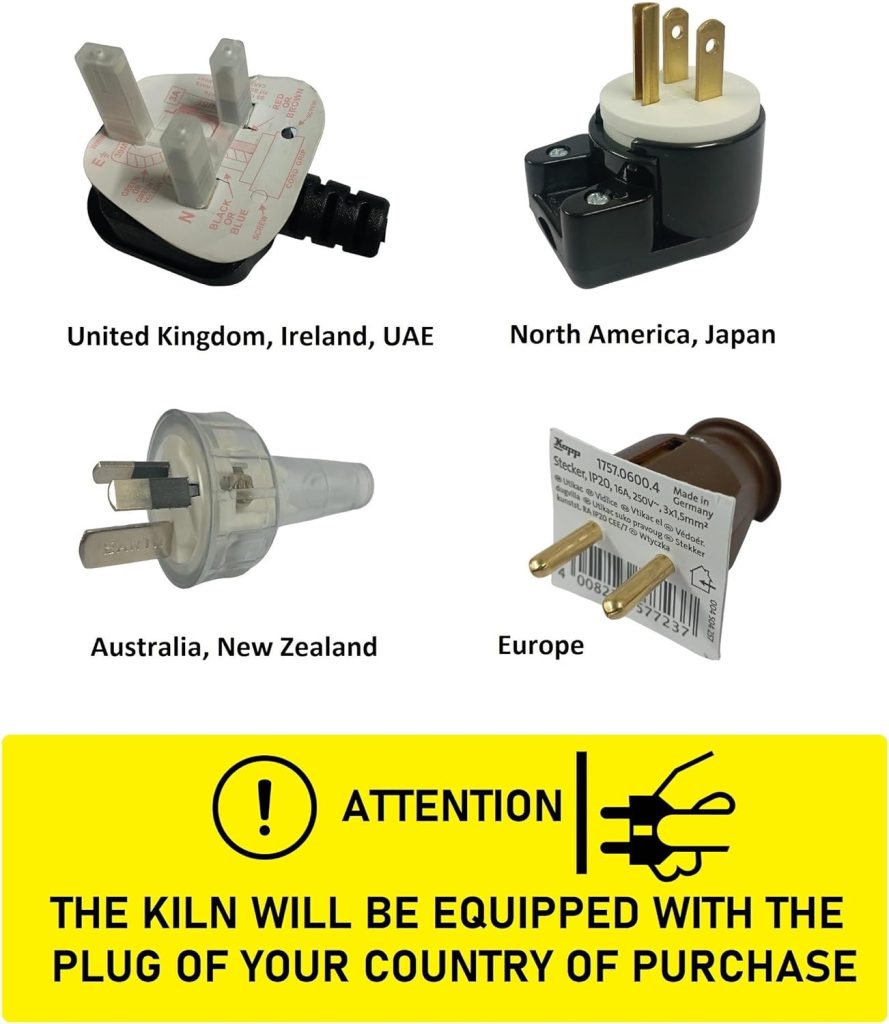

– 230 Vac +/-10% with a standard EU, UK, AU or US electrical plug on request;
– Single phase, 13 A;
– 2950 Watt;
– No asbestos at all;
– Maximum working temperature – 1300 C (2372 F);
– Kiln dimensions in CM (inch): H38 x W38 x L56 (14/2.5″ x 14.2/5″ x 26″);
– Chamber dimensions in CM (inch): H21 x W21 x L29 (8″ x 8″ x 11.5″ and 14″ Diagonal);
– Chamber volume: 11.5 cubic litre;
– 24-segments programmable temperature controller that will allows you automatically reach and hold (soak) at required time any temperatures between a room temperature and 1300 C as well as regulate cooling and heating speed (time).
– One year free Skype help on assembling and programming;
– Safety switch mechanism for disconnecting heating elements of the kiln from a power supply if door is open or closed not properly;
– One ventilation hole with stainless steel shutter on the door;
– Positions of three heating elements: top, right and left;
– Digital over/low-temperature regulation secure system;
– Smoothing circuit (stability work control) digital guard;
– Industrial graded K-thermocouple on right wall of the kiln (1.8 mm wire);
– Calibrated on five points: 100 C; 240 C; 450 C; 830 C and 1075 C;
– Estimated accuracy of SOAKING temperature: +/- 1 C;
– You will require a standard screw-driver to fix electrical box with temperature controller, thermocouple and safety switch’s mechanism of this kiln by few screws (supplied).
– Weight – 38 Kg (44 KG with wooden box);
– Cable – 2.5 M;
– Made in UK.

Technical Specification of the touch-screen Wi-Fi controller

•                Use 4.3″ (11 cm) TFT Touch-Screen or Web interface display;
•                Connection type for connecting to internet: Wi-Fi, USB-2 or Ethernet;
•                Will work with any type of thermocouple;
•                Two alarms on any output’s type. Can connect three kilns at a time;
•                Outputs: SSR, relays, TRC – 20 mA;
•                Controller’s top working temperature – 1610 C (2930 F);
•                6 programs x 24 temperature/time segments (points);
•                Possibility to start program from any segment;
•                Possibility to stop program at any time;
•                Power-off protection system;
•                Screen saver;
•                Will work with both: Android and IOS on smartphones, PC, Laptop, Tablet, TV;
•                No limit on working time – can work 24/7;
•                Counter of completed programs (up to 9999);
•                Very easy to create new program or modify existing ones;
•                AI – Self-learning function;
•                Status can be viewed via Wi-Fi from multiple devices at a time;
•                Inner’s temperature still will be monitored after the program will be finished;
•                Time SCHEDULED START function – choose when your kiln will start program;
•                One-year-free programming and re-programming service on email or WA;
•                Three languages screen: English, Spanish, East;
•                Modern design. Last model TSWF-624;
•                Easy to operate and suitable for both beginners and professionals;
•                User manual is available on request;
•                Video is available on our YouTube’s channel on how-to-program;
•                Six programs can be pre-settled on request for get this kiln ready-to-use.
