Description

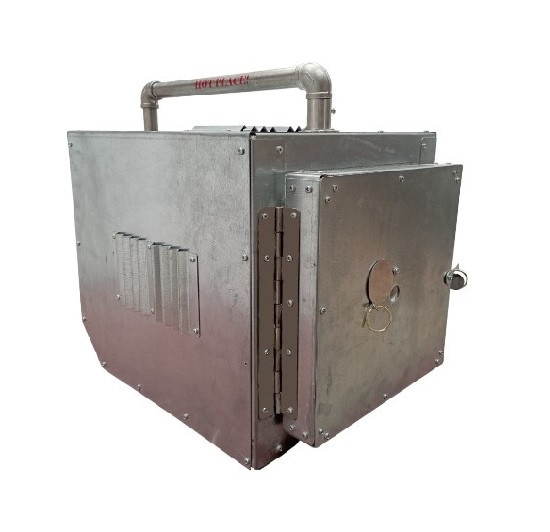

If you are looking for programmable kiln, which is capable of heating up evenly all your firing materials at the same time when, look no further, because our new R-1300P-ACS (Air circulation system Kiln) is the perfect match for your needs.
This 1300P-ACS electric muffle kiln with a 32-segment programmable temperature/time controller and 11.5 L chamber. This kiln is especially designed for working with all, most popular materials such as: metals, ceramics, pottery, glazes, stones, enamels and others that should be heated up to temperatures up to 1300 C/2372 F. For your safety, this kiln has a secure mechanism that will disconnect the kiln’s power supply from the heating element/s if the door of the kiln is open or closed not properly. It also has one 16-mm hole with a stainless steel shutter on the door to see firing objects during firing process. This kiln has also a digital, over/low-temperature regulation secure system to hold same temperature during the whole soaking process and a smoothing circuit digital guard for accurate reading and stability work of the programmable controller on fluctuations of electricity that is very important option for most ceramic, glazing and pottery firing processes.
WHY YOU MAY WANT TO BUY OUR PRODUCT (Air circulation system Kiln)
This kiln supplied with an unique air circulation system which will allow you to distribute the heat evenly inside the chamber and therefore the materials inside will be heating up evenly throughout the entire chamber. Due to increased air flow circulation, the required firing temperature can be reached in a shorter amount of time. Also, the heat being transferred more efficiently will significantly reduce the risk of overheating the heating element and consequently will extend its lifespan, which in return will make your kiln last longer
Technical specification:
– Brand name: Technical Supermarket;
– Model: R-1300P-ACS;
– 115Vsc +/-10% or 230 Vac +/-10% with UK; EU or AU standard electrical plug on request;
– 2900 Watt;
– Maximum working temperature – 1300 C (2372 F);
– Kiln dimensions in MM (inch): H470 x W380 x L560 (18.1/2″ x 15″ x 22″);
– New empty kiln estimated heating time to 1300 C – 90 minutes;
– Chamber dimensions in MM (inch): H200 x W200 x L290 (8″ x 8″ x 11.1/2″ and 14″ Diagonal);
– 32 time/temperature segments 2-line programmable temperature controller that will allows you automatically reach, hold (soak) and change up to 32 temperature/time points;
– Ventilation hole on the door (with a stainless steel shutter);
– Adjustable flow Air Circulation System 0.2-20 LPM;
– Safety switch mechanism for disconnecting heating elements from power supply if door is open or closed not properly;

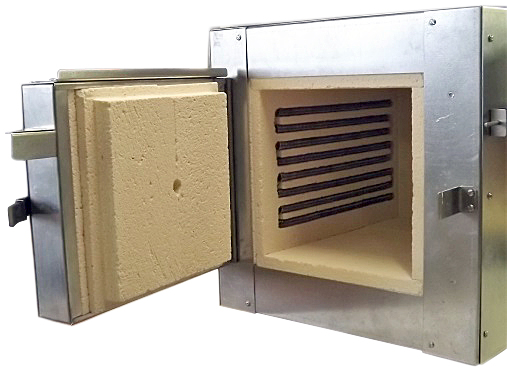

– Position of three heating elements: right, left and top;
– Digital over/low-temperature regulation secure system;
– Smoothing circuit (controller’s stability work) digital guard;
– Industrial graded K-thermocouple on right wall of the kiln;
– Calibrated. Estimated accuracy of SOAKING temperature: +/- 1 C;
– You will require a standard screw-driver to fix electrical box with temperature controller, thermocouple and safety switch’s mechanism of this kiln by few screws (supplied).
– This kiln must be positioned on a fire-resist stand.
– Metal stand and set of two ceramic shelves with four muffle supports for this kiln available in “Accessories”;
– Weight – 44 Kg (50KG in a BOX);
– Cable – 2.5 M.
Please feel free to contact us in case you require non-standard custom size & design. You can also visit our main website to find out more information.

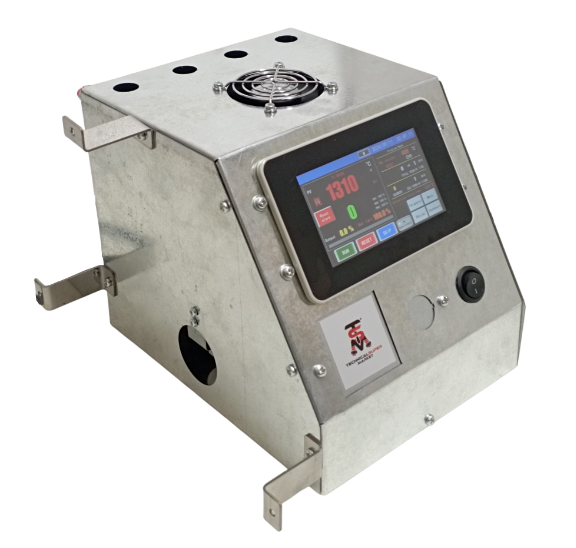

Technical specification of the Control box
- Use 4.3″ (11 cm) TFT Touch-Screen or Web interface display;
- Connection type for connecting to internet: Wi-Fi, USB-2 or Ethernet;
- Data login function: DATA may be exported to your devices;
- Will work with any type of thermocouple;
- Input: Single or Three phase on request. 100 V – 240 V;
- Two alarms on any output’s type. Can connect three kilns at a time;
- Outputs: SSR, relays, TRC – 20 mA;
- Controller’s top working temperature – 1610 C (2930 F);
- 6 programs x 24 temperature/time segments (points);
- Possibility to start program from any segment;
- Possibility to stop program at any time;
- Power-off protection system;
- Screen saver;
- Will work with both: Android and IOS on smartphones, PC, Laptop, Tablet, TV;
- No limit on working time – can work 24/7;
- Counter of completed programs (up to 9999);
- Very easy to create new program or modify existing ones;
- IA, Self-learning function;
- Status can be viewed via Wi-Fi from multiple devices at a time;
- NIST linear conversion for accurate thermocouple reading;
- Inner’s temperature still will be monitored after the program will be finished;
- Time scheduled START function – choose when your kiln will start program;
- One-year-free programming and re-programming service on email or WA;
- Five languages screen: English, Spanish, French, Italian and German;
- Modern design. Last model TSWF-624;
- Easy to operate and suitable for both beginners and professionals;
- User manual is available on request;
- Video is available on our Youtube’s channel on how-to-program;
- Six programs can be pre-settled on request for get this kiln ready-to-use.
This Touch Screen or Web interface programmable controller will work with any type/size of kilns. If you connect to it via Wi-Fi you will get access to the controller management soft using any device with a web browser, e.g. PC, tablet, smartphone, TV etc independent of whether the device is Windows, Linux or iOS.
WE DELIVER ALL OUR PRODUCTS WORLDWIDE 24/7
We deliver all our products all over the world (and have been since 2004) and therefore we have vast experience in professional packaging, to keep a high level of customer satisfaction we insure that every product is packed to a professional standard. Furthermore in the highly unlikely event, of parcel being damaged in transit we offer a replacement at no extra cost!
Delivery specification:
– The R-1300P-ACS programmable electric kiln with air circulation system;
– K-thermocouple;
– Safety switch mechanism;
– Electrical box with a time/temperature programmable controller with touch-screen display and wi-fi module and secure switch;
– Downloadable User Manuals (PDF);
– One year manufacturer warranty with professional after-selling services include warranty, parts-by-post worldwide and online help by email or/and Skype, WA, Zoom.
