Description

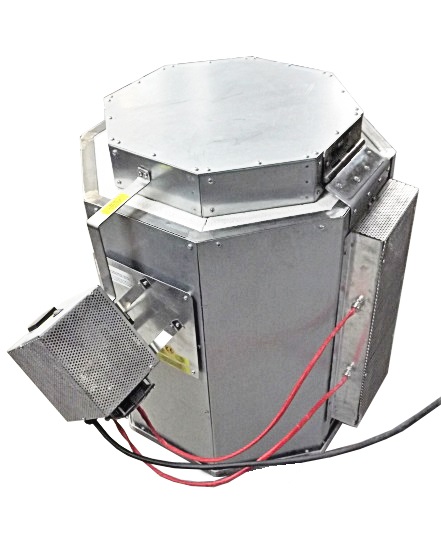

THIS 1240 C (2264 F) TOP-LOADED ELECTRICAL MUFFLE KILN WITH A 32-SEGMENT PROGRAMMABLE TEMPERATURE/TIME CONTROLLER AND 74 CUBIC LITER SPACIOUS CHAMBER WAS ESPECIALLY DESIGNED FOR WORKING WITH CERAMICS, POTTERY, GLAZES AND OTHER TYPES OF MATERIALS THAT SHOULD BE HEATED UP TO 1240 C. THIS KILN HAS A 32-SEGMENTS (TEMPERATURE-TIME STEPS) PROGRAMMABLE TEMPERATURE-TIME CONTROLLER WITH A DIGITAL, OVER/LOW-TEMPERATURE REGULATION SECURE SYSTEM (FOR HOLDING SAME TEMPERATURE DURING THE WHOLE SOAKING PROCESS) AND A SMOOTHING CIRCUIT DIGITAL GUARD FOR ACCURATE READING AND STABILITY WORK OF THE PROGRAMMABLE CONTROLLER ON FLUCTUATIONS OF ELECTRICITY THAT IS VERY IMPORTANT OPTION FOR MOST CERAMIC, GLAZING AND POTTERY FIRING PROCESSES.

Technical specification:

– Brand name: Technical Super Market;
– Model: RO-74L;
– Power supply: 230V Single phase or 380-400V Three phase on request;
– Grade: commercial;
– Power: 3500 Watt;
– Continuously working time – 24 hours;
– Volume of chamber: 74 Cubic Litres;

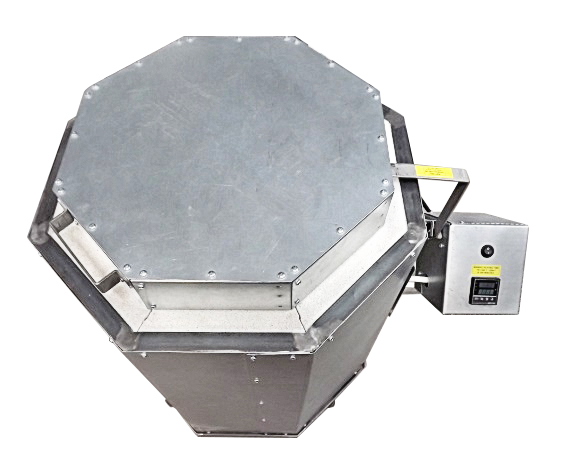

– Shape of chamber – Octagon (8 corners);
– Three/Four (model) powerful heating elements around all walls;
– Maximum working temperature – 1240 C (2264 F);
– Estimated kiln dimensions in CM (inch): diameter 62 (23″) x 70 (36″) height;
– USEFUL chamber’s dimensions in CM (inch): 40 (16″) diameter x 55 (22″) height;
– Minimal heating time to 1240 C – 300 minutes;
– Continuously working time on 1240 C (2336): 15-20 minutes;
– 32 time/temperature segments 2-line programmable temperature controller that will allows you automatically reach, hold (soak) and change up to 32 temperature/time points;
– Industrial graded 64A “clicking” contactor/s or two SSR-40 on request;

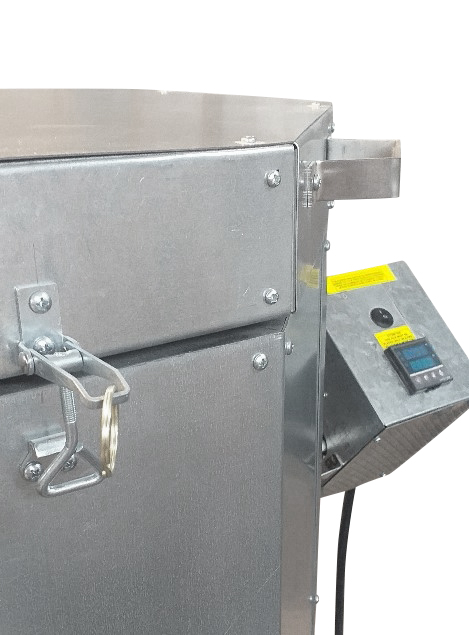

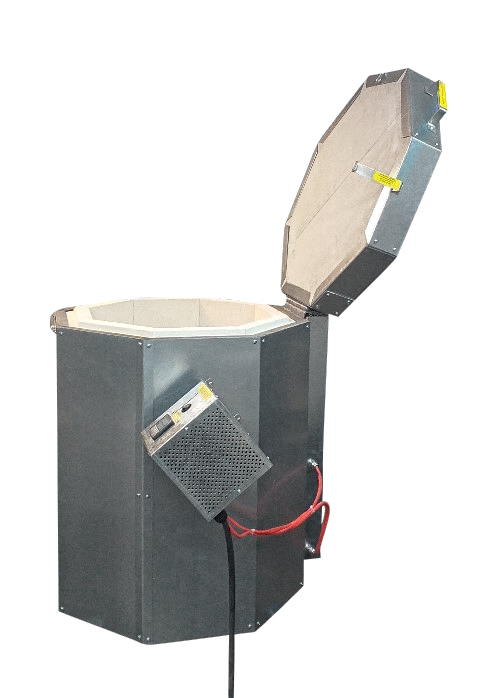

– Safety switch for disconnecting power supply from heating elements when this lid is open or closed not properly;
– Digital over/low-temperature regulation secure system;
– Smoothing circuit (controller’s stability work) digital guard;
– Possibility to find present step and time on the step;
– PFRS (Power Fail Recovery System) if you will instantly lost electricity connection for short time;

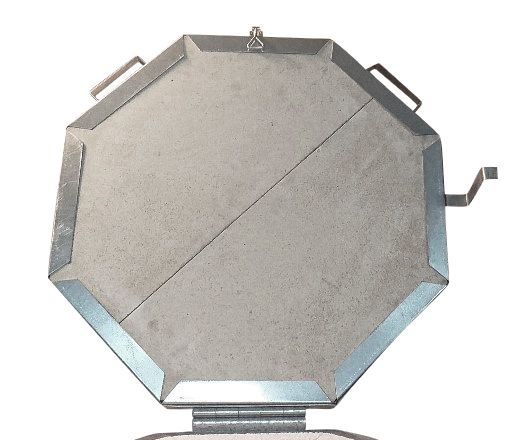

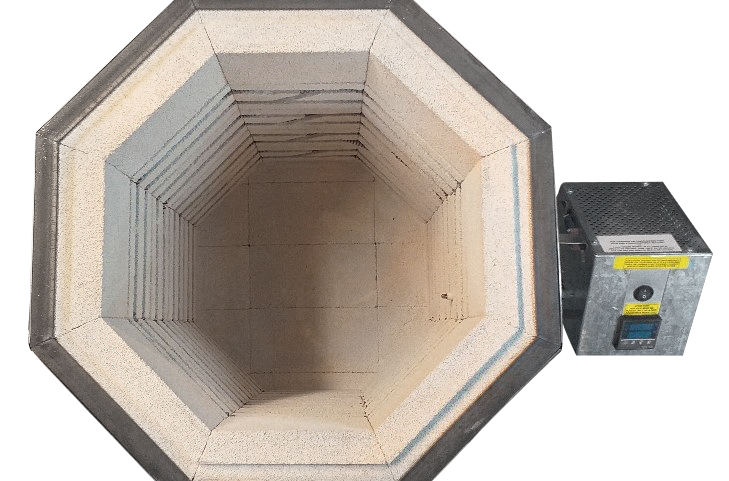

– Material of chamber (inner): full insulation refractory bricks;
– Industrial graded K-thermocouple with 3-mm wires;
– Calibrated. Estimated accuracy of SOAKING temperature: +/- 1 C;
– If not installed yet, you may require a standard screw-driver for fixing and electrical box with temperature controller and a thermocouple to this kiln by few screws (supplied).
– Weight – 120 Kg (150 kg on pallet);
– Cable – 5 M;
– Made in UK.

Delivery specification:

– The RH-74 L top-loaded programmable electrical muffle kiln;
– K-Thermocouple;
– Electrical box with 32-segments programmable temperature/time controller;
– Downloadable user manual and temperature controller video;
– One year manufacturer warranty include parts-by-post and free online technical support on WA, Teams or Zoom.
