Description

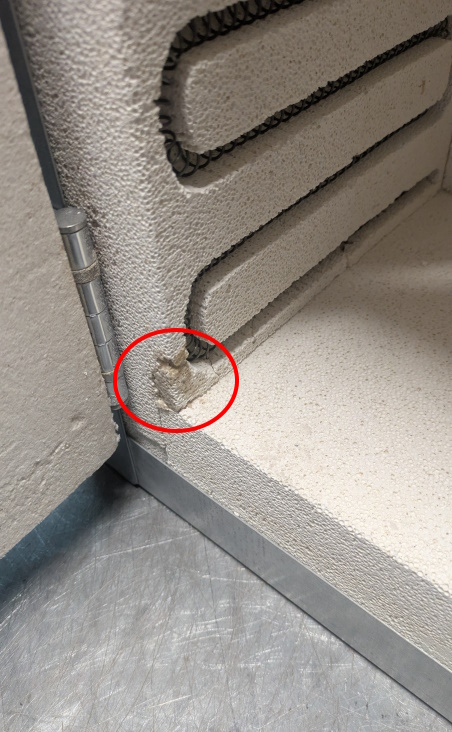

This electric programmable table-top kiln with 25% discount was slight damaged on transit (has one crack and one bent of the door – please see picture attahched) but still is under full manufacturer warranty and fully suitable for both: individual and professional use. It is the perfect choice for workshops which need a small, affordable compact kiln to fire small objects on a large scale at a time. It is ideal for Glass, Clay, PMC, Stones and any other material with the required firing temperature of up to 1100C/2012F.

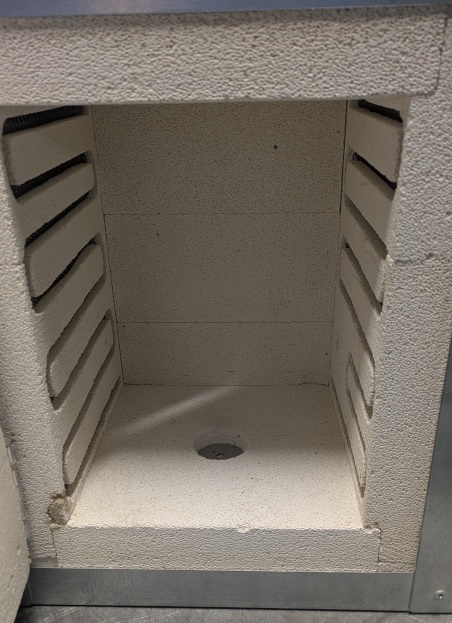

Whether you’re a hobbyist or a seasoned professional, this small kiln is a canvas for your imagination. This 1100°C/2012F front-loading kiln has firing chamber volume of 12 cubic litres. The kiln’s door opens 90°, there is a 16-mm ventilation hole with a stainless steel shutter on the door for the ventilation purpose and through which you can also see firing object/s during all firing process.

The Kiln is equipped with digital programmable time/temperature controller with 32 segments (steps), that will allow you to regulate heating and cooling speed between any required temperatures. It also has a digital, over/low-temperature regulation secure system to hold same temperature during the whole soaking process and a smoothing circuit digital guard for accurate reading and stable work of the temperature controller on fluctuations of electricity that is very important option for most professional firing processes.

Detailed Technical specification:

– Brand name: Technical Super Market;
– Model: R14-XLV;
– CE , FCC, UKCA marked, ISO-9001-2008;
– 230 Vac +/-10% with a standard EU, UK, or AU electrical plug on request;
– Single phase, 7 A;
– 1600 Watt;
– No asbestos at all;
– Maximum working temperature – 1100 C (2012 F);
– Continuously working time on 1100 C = 60 minutes. Below 1000 C = 12 hours.
– External Kiln dimensions in MM/CM (inch): L 480/48 x W 350/35 x H 430/43 (19″ x 14″ x 17″);
– Chamber dimensions in MM/CM (inch): L 200/20 x W 200/20 x H 275/27.5 (8″ x 8″ x 11″)
– Firing Chamber volume: 12 cubic litres;
– 32 time/temperature segments on 2-line programmable temperature controller that will allow you to automatically reach, hold (soak) and change up to 32 temperature/time points (for regulating the heating and cooling speed)
– One year free WA & ZOOM help on assembling and programming;
– One ventilation hole with stainless steel shutter on the door;
– Positions of two heating elements: right and left;
– Digital over/low-temperature regulation secure system;
– Smoothing circuit (stability work control) digital guard;
– Industrial graded K-thermocouple on right wall of the kiln;
– Calibrated on five points: 100 C; 240 C; 450 C; 830 C and 1075 C;
– Estimated accuracy of SOAKING temperature: +/- 1 C;
– You will require a standard screw-driver to fix electrical box with temperature controller, thermocouple and safety switch’s mechanism of this kiln by few screws (supplied).
– Weight – 33 Kg (37 KG in a wooden box);
– Cable – 2.5 M;
– MADE IN UK.

SET OF SHELVES WITH CERAMIC AXIS FOR THIS MODEL KILN ARE AVAILABLE IN “PARTS & ACCESSORIES” SECTION.

WHY YOU MAY WANT TO BUY OUR PRODUCT (Table-top Kiln for small pieces)

Buying directly from the manufacture you have the guaranty of the best price. Our customers are also provided with full range of after-sale service for the equipment and accessories bought from us including delivery, installation by our engineers, warranty, maintenance, parts, materials.

Please feel free to contact us in case you require non-standard custom size & design. You can also visit our other websites to find out more information.

Delivery specification:

– The R14-XLV electric programmable table-top kiln with a bend and cracks;
– K-thermocouple;
– Control box with a programmable controller;
– Downloadable User Manuals (PDF);
– One year manufacturer warranty.
