40-L, 1100 C (2012 F) Electrical Muffle Kiln: 310x310x420 MM Inner

(1 customer review)

£874.00 inc. VAT

Delivery specification:

– This R-310C electric muffle kiln;
– Industrial graded K-thermocouple;
– Safety switch mechanism (if not installed yet);
– Electrical box with REX-C100 temperature controller and a secure switch (if not installed yet);
– Downloadable User Manuals and video on how to use the controller;
– One year manufacturer warranty with all after-selling services include warranty, parts-by-post worldwide and technical support by email or/and Skype/WhatsApp.

SKU: R-310C Category:

Description

THIS IS VERY USEFUL 1100 C (2012 F) ELECTRICAL MUFFLE KILN WITH P.I.D TEMPERATURE CONTROLLER AND 40 CUBIC LITERS SPACIOUS CHAMBER THAT IS ESPECIALLY DESIGNED FOR WORKING WITH ALL TYPES OF MATERIALS ON TEMPERATURES BELOW 1100 C (2012 F). FOR YOUR SAFETY THIS KILN HAVE A SECURE MECHANISM THAT WILL DISCONNECT KILN’S POWER SUPPLY FROM ITS HEATING ELEMENT/S IF DOOR OF THE KILN IS OPEN OR CLOSED NOT PROPERLY. IT HAS ONE 16-MM HOLE WITH A STAINLESS STEEL SHUTTER ON THE DOOR TO SEE FIRING OBJECT/S DURING ALL FIRING PROCESS. THIS KILN HAS ALSO A DIGITAL, OVER/LOW-TEMPERATURE REGULATION SECURE SYSTEM TO HOLD SAME TEMPERATURE DURING THE WHOLE SOAKING PROCESS AND A SMOOTHING CIRCUIT DIGITAL GUARD FOR ACCURATE READING AND STABILITY WORK OF THE TEMPERATURE CONTROLLER ON FLUCTUATIONS OF ELECTRICITY THAT IS VERY IMPORTANT OPTION FOR MOST MATERIALS.

Technical specification:

– Brand name: Technical Supermarket (London);
– Model: R-310C;
– CE, UKCA, CFF marked, ISO-9001;
– Single phase, 230V+/-10%/50Hz or 115V+/-10%/60Hz on request;
– Supplied with no plug: should be connecting directly to 20 A circuit breaker;
– 5300 Watt;
– No asbestos at all;
– Maximum working temperature – 1100 C (2012 F);
– Heating time to top temperature – 180 minutes;
– Continuously working time on top temperatures below 1000 C = 12 hours.

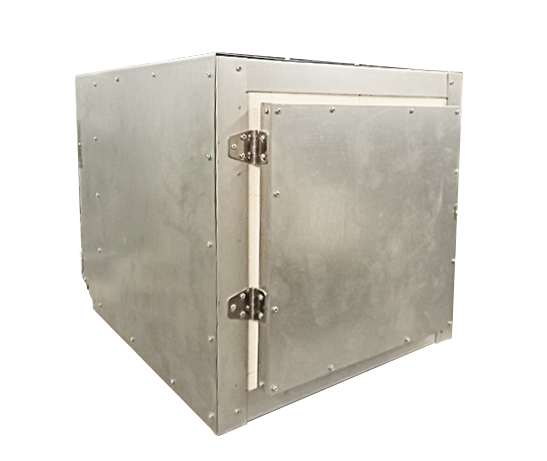

– Kiln dimensions in MM (inch): H470 x W470 x L560 (19″ x 19″ x 22″);
– Useful chamber/inner dimensions in MM (inch): H310 x W310 x L420 (12″ x 12″ x 16″);
– Chamber/inner volume: 40 L.;
– P.I.D. temperature/time controller that will allow you manually pre-set any single temperature, reach and hold (soak) it as long as you need;
– Safety switch mechanism for disconnecting heating element/s from power supply if door is open or closed not properly;
– One ventilation hole with stainless steel shutter on the door;

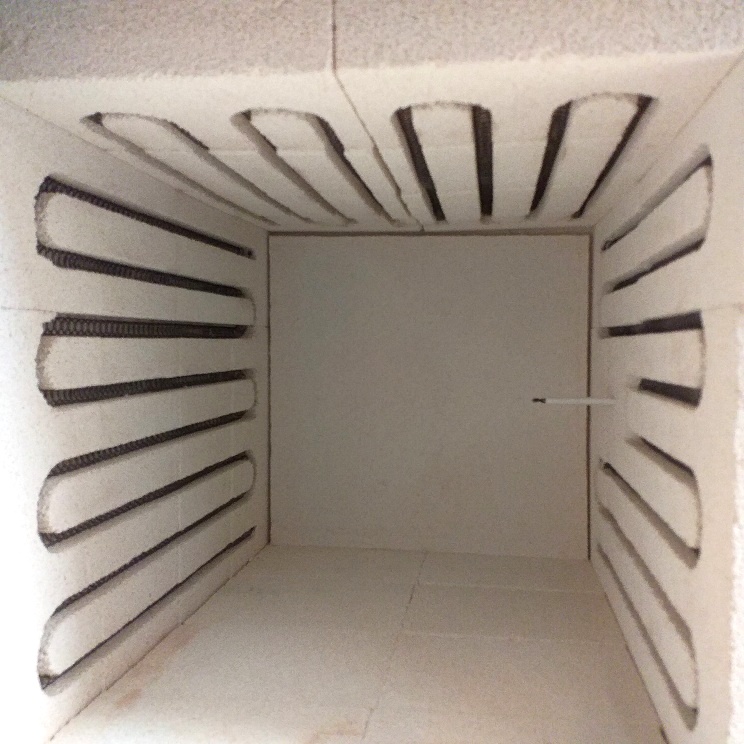

– Positions of three heating elements: right, left and on the top;
– Digital over/low-temperature regulation secure system;
– Smoothing circuit (stability work control) digital guard;
– Industrial graded K-thermocouple on right wall of the kiln;
– Calibrated. Estimated accuracy of SOAKING temperature: +/- 1 C;
– Manufacturer reserve all rights to make changes that improve the performance of this kiln;
– Weight – 50 Kg + pallet;
– Cable – 5 M.

WHY YOU MAY WANT TO BUY OUR PRODUCT (Electrical Muffle Kiln)

Buying directly from the manufacture you have the guaranty of the best price. Our customers are also provided with full range of after-sale service for the equipment and accessories bought from us including delivery, installation by our engineers, warranty, maintenance, parts, materials.

Please feel free to contact us in case you require non-standard custom size & design. You can also visit our main website to find out more information.

WE DELIVER ALL OUR PRODUCTS WORLDWIDE 24/7

We deliver all our products all over the world (and have been since 2004) and therefore we have vast experience in professional packaging, to keep a high level of customer satisfaction we insure that every product is packed to a professional standard. Furthermore in the highly unlikely event, of parcel being damaged in transit we offer a replacement at no extra cost!

Additional information

Weight 70 kg
Dimensions 80 × 100 × 70 mm

Downloadable User Manual

Downloadable User Manual: RC-310P User Manual
