Description

Are you looking for a professional, commercial-grade, upside-down type metal melting kiln with a large-capacity crucible for melting gold, silver, copper, and other suitable metals? If so, this kiln could be the ideal solution for you.

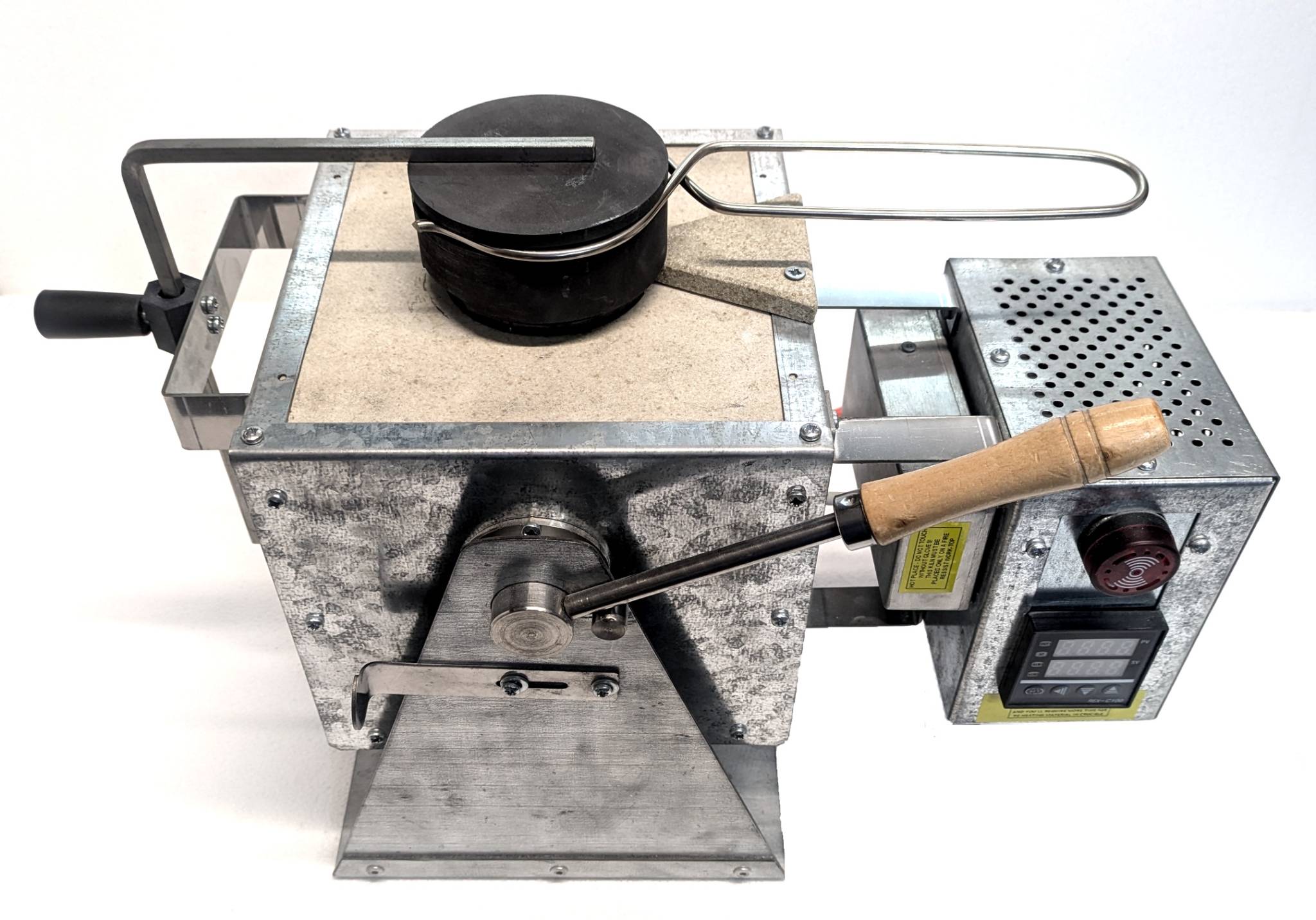

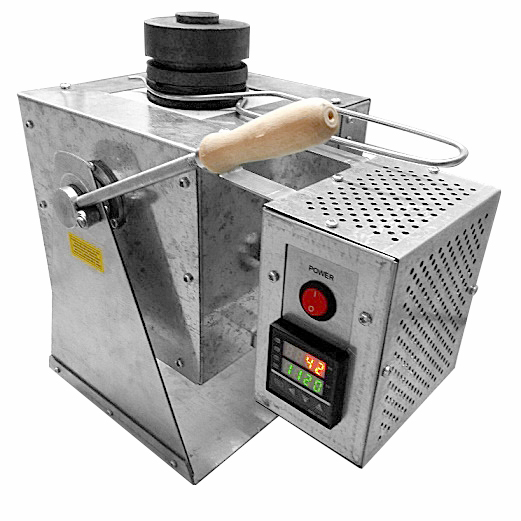

This is a high-tech, Safe-Cast™ upside-down type electric melting kiln with a maximum operating temperature of 1130°C (2066°F). Designed for both beginners and professionals, it does not require any specialist knowledge to operate and can be used for metal casting without the need for additional equipment.

**Key Advantages**

* Commercial-grade design suitable for continuous production work.
* Allows molten metal to remain at casting temperature for extended periods, making multiple castings possible without restarting the heating process.
* Helps reduce the risk of heat shock, mould cracking, workbench damage, and premature wear of the heating element.
* Eliminates the need for separate mould pre-heating equipment, saving valuable workspace and simplifying the casting process.
* Will help reduce electricity consumption compared to repeatedly reheating a kiln from room temperature.
* Helps extend the service life of graphite crucibles and moulds by reducing prolonged exposure to maximum temperatures.

To protect the heating element from excessive wear, the kiln is designed not to remain continuously at the selected temperature. Once the required temperature is reached, the kiln will automatically cool (200-300C) before reheating to the pre-set temperature. This cycle repeats automatically, allowing you to perform multiple castings without having to reheat the kiln from room temperature each time.

**Three Pouring Methods**

This kiln allows molten metal to be poured using any of the following methods:

1. **Traditional Method**

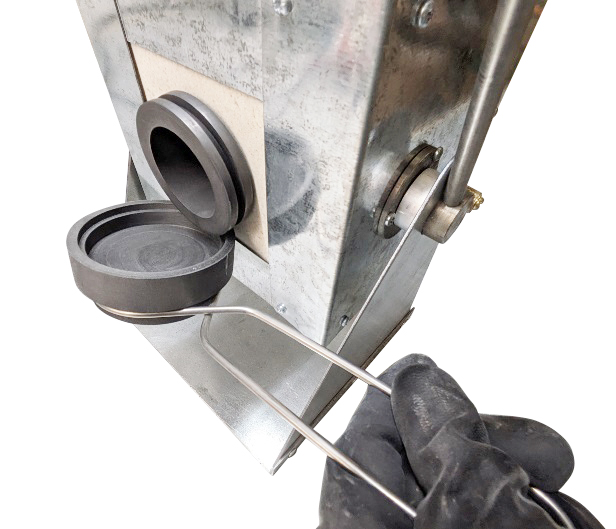

Once the required temperature has been reached, remove the crucible from the kiln using suitable tongs and pour the metal into a pre-heated mould.

2. **Tilting Method**
Leave the crucible inside the kiln and just tilt the kiln using the front handle to pour the molten metal directly into the mould.

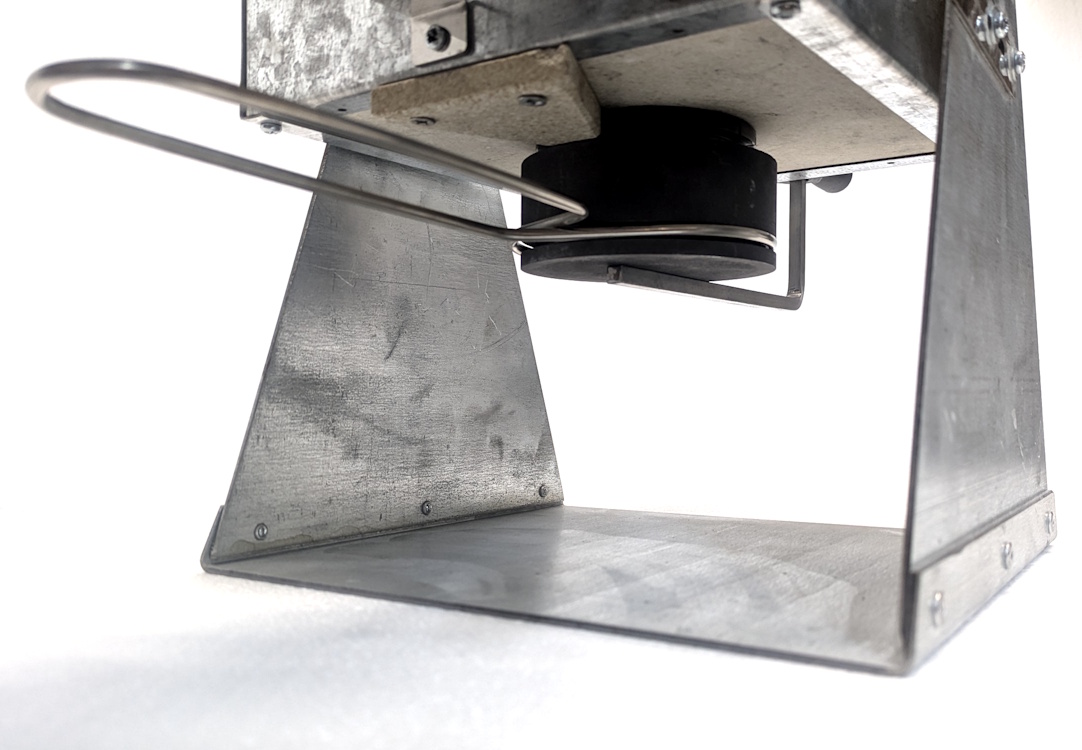

3. **Safe-Cast™ Upside-Down Method**

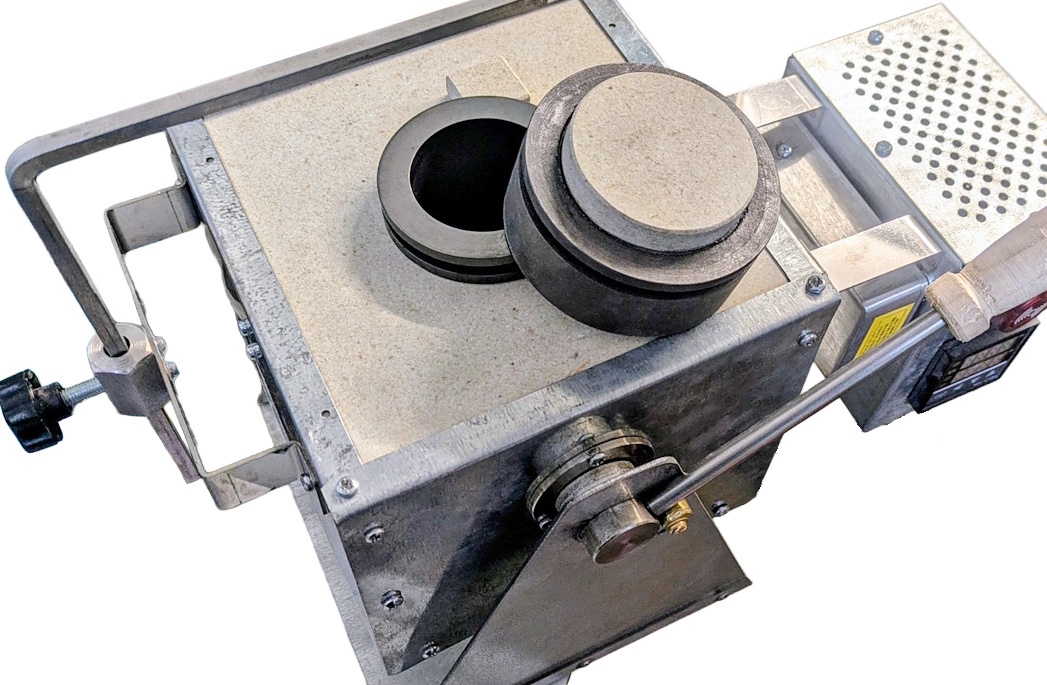

Attach the mould to the top of the kiln for pre-heating, helping to minimise thermal shock and mould cracking. When ready, invert the kiln to transfer the molten metal directly into the heated mould. This method provides maximum safety, efficiency, and casting consistency.

TECHNICAL SPECIFICATION:

– BRAND: Technical Super Market (London);
– MODEL NAME (SKU): “SAFECAST-4”;
– CASTING TYPE: upside-down;
– INPUT: 115 V or 230 V +/-10% on request with standard domestic UK, EU, AU or US electrical plug;
– POWER: Domestic, Single phase, 700 Watt, 3 A;
– CE, UKCA, FCC, CPSA, ISO:9001 certified;
– TOP WORKING TEMPERATURE: 1130 C (2066 F) digitally adjustable;
– CONTINUOUSLY WORKING TIME: 24/7;
– ESTIMATED HEATING TIME to top temperature: 45-90 mins depending on type of crucible and it’s condition;
– HEATING ELEMENT PROTECTION SYSTEM – YES;
– STANDARD: 100-OZ (3 KG) PURE GOLD GRAPHITE CRUCIBLE with internal dimensions: 50 mm in diameter x 85 mm in height;
– DIMENSIONS OF KILN (include lid and wooden handle): 35cm(Wide) x 25cm x 40cm (High);
– POWER CABLE: 1.5 meter;
– WEIGHT OF KILN in box: 14 Kg;
– ONE YEAR – standard manufacturer warranty;
– MADE IN UK (London).
