Description

Technical specification:

– Brand Name: “Technical Supermarket”;
– Model name (SKU): R9D-100;
– Input:
115V+/-10% version with USA/CANADA standard plug (two flat + “U” pins).
230V+/-10% version with EU standard plug (two round pins + E).
230V+/_10% version with UK/IRELAND standard 3 square pins plug.
230V+/-10% version with AU/NZ electrical plug (three flat pins).
– Power – 750 Watt;
– Maximum heating temperature – 1120 C (2048 F);
– Suitable graphite crucible type: 100-Oz (3100 grams) PURE gold;
– Estimated heating time to 1120 C) – 50 minutes;
– Furnace’s dimensions with a lid in MM(inch): 150(6″) x 150(6″) x 350(14″)H;
– Fixed graphite crucible OD: 75D x 125H (mm). 1″=25.4 mm;
– Fixed graphite crucible ID: 51D x 80H (mm). 1″=25.4 mm;
– Weight – 3.8 kg;

Delivery specification:

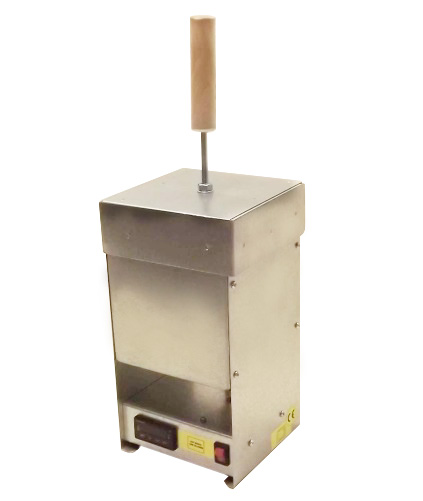

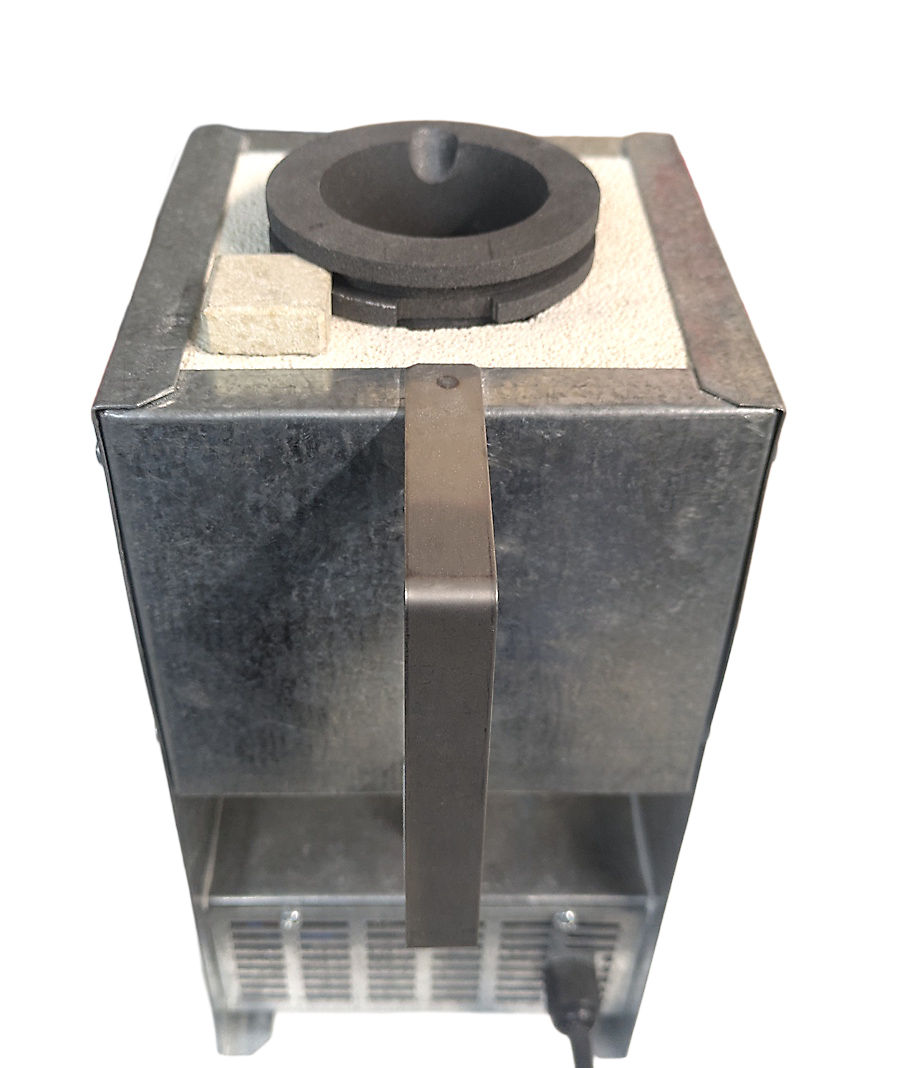

– R9-100 Digital melting kiln with lid;
– One 100-Oz pure gold graphite crucible;
– Downloadable User manual with video on temperature controller;
– One year manufacturer warranty.
