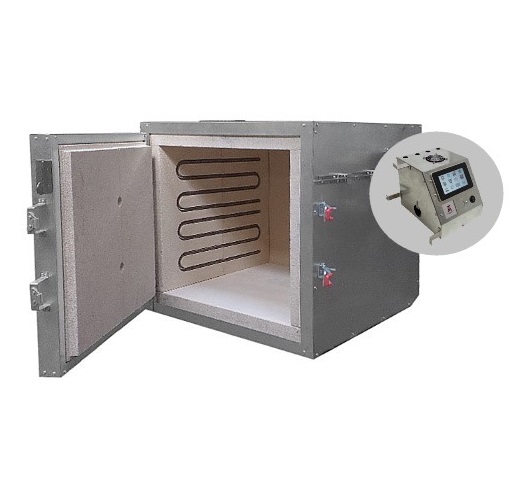

1240 C (2264 F) Programmable Kiln With 160 C/L Chamber

(1 customer review)

£1,990.00 inc. VAT

Delivery specification:

– This R500P-1240 electrical programmable kiln;
– Industrial graded thermocouple;
– Safety switch mechanism;
– Electrical box with a programmable controller and a secure switch;
– Downloadable user manual and a temperature controller instruction;
– One year free Skype/WA support on installation and programming;
– One year manufacturer warranty.

SKU: R500P-1240 Category:

Description

THIS R-500-1240P ELECTRICAL PROGRAMMABLE KILN 160C/L CHAMBER WITH A 32-SEGMENT PROGRAMMABLE TEMPERATURE/TIME CONTROLLER AND 160 CUBIC LITER SPACIOUS CHAMBER IS ESPECIALLY DESIGNED FOR WORKING WITH MANY TYPES OF MATERIALS WITH FIRING POINT BELOW 1240 C (2264 F). FOR YOUR SAFETY THIS KILN HAS A SECURE MECHANISM THAT WILL DISCONNECT THE KILN’S POWER SUPPLY FROM ITS HEATING ELEMENT/S IF DOOR OF THE KILN IS OPEN OR CLOSED NOT PROPERLY. THIS KILN HAS ALSO A DIGITAL, OVER/LOW-TEMPERATURE REGULATION SECURE SYSTEM TO HOLD SAME TEMPERATURE DURING THE WHOLE SOAKING PROCESS AND A SMOOTHING CIRCUIT DIGITAL GUARD FOR ACCURATE READING AND STABILITY WORK OF THE PROGRAMMABLE CONTROLLER ON FLUCTUATIONS OF ELECTRICITY THAT IS VERY IMPORTANT OPTION FOR MOST CERAMIC, GLAZING AND POTTERY FIRING PROCESSES.

Technical specification:

– Brand name: Technical Supermarket (London);
– Model: R500P-1240;
– 230 Vac +/-10%, no plug – should be connected directly to 32 A circuit breaker;
– 5500 Watt;
– Maximum working temperature – 1240 C (2264 F);
– Kiln dimensions in MM (inch): H700 x W700 x L750 (28″ x 28″ x 30″);
– Estimated heating time to 1240 C – 240 minutes;
– Chamber dimensions in MM (inch): H530 x W530 x L570 (21″ x 21″ x 23″ and 27″ Diagonal)
– Continuously working time on 1240 C (2264 F): 15 minutes;
– 32 time/temperature segments 2-line programmable temperature controller that will allows you automatically reach, hold (soak) and change up to 32 temperature/time points;
– Safety switch mechanism for disconnecting heating elements from a power supply if door is open or closed not properly;
– Digital over/low-temperature regulation secure system;
– Smoothing circuit (controller’s stability work) digital guard;
– Industrial graded K-thermocouple on right wall of the kiln;
– Calibrated on five points. Estimated accuracy of SOAKING temperature: +/- 1 C;
– You will require a standard screw-driver to fix electrical box with temperature controller, thermocouple and safety switch’s mechanism of this kiln by few screws (supplied).
– This kiln must be positioned on a fire-resist stand.
– Weight – 75 kg;
– Cable – 5 M.

Movable metal stand, set of ceramic shelves with stands, ventilation holes on the door, on the top or behind and an air extraction system are available on request.

WHY YOU MAY WANT TO BUY OUR PRODUCT (Programmable Kiln 160C/L Chamber)

Buying directly from the manufacture you have the guaranty of the best price. Our customers are also provided with full range of after-sale service for the equipment and accessories bought from us including delivery, installation by our engineers, warranty, maintenance, parts, materials.

Please feel free to contact us in case you require non-standard custom size & design. You can also visit our main website to find out more information.

WE DELIVER ALL OUR PRODUCTS WORLDWIDE 24/7

We deliver all our products all over the world (and have been since 2004) and therefore we have vast experience in professional packaging, to keep a high level of customer satisfaction we insure that every product is packed to a professional standard. Furthermore in the highly unlikely event, of parcel being damaged in transit we offer a replacement at no extra cost!

Additional information

Weight 75 kg
Dimensions 100 × 80 × 80 mm

Downloadable User Manual

Downloadable User Manual: R500 User Manual

Work with programmable controller
