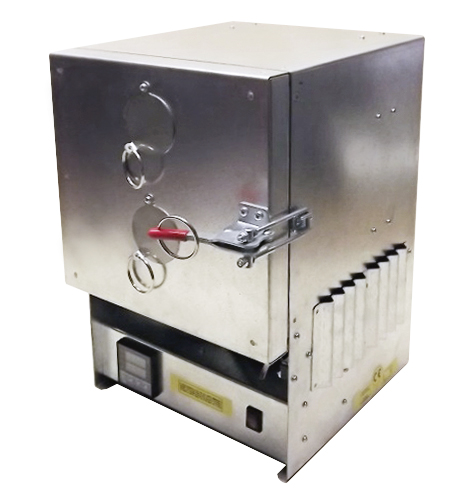

R14-LP 950C Programmable Electrical Muffle Kiln

£379.00 inc. VAT

THIS IS A COMPACT, PROGRAMMABLE, ELECTRICAL MUFFLE KILN WITH A LARGE ENOUGH MUFFLE CHAMBER (NO ASBESTOS AT ALL) AND WITH A PROGRAMMABLE, 32-SEGMENTS TEMPERATURE/TIME CONTROLLER THAT WILL ALLOWS YOU TO WORK WITH ALL TYPES OF MOST POPULAR MATERIALS AND HEATING PROCESSES SUCH AS METALS, GLASS FUSING AND ANNEALING, FIRING METAL CLAYS, ENAMELLING, STONES, WOOD ETC WITH REQUIRED HEATING TEMPERATURES BELOW 950 C (1772 F).

SKU: R14-LP Category:

Description

Technical Specification:

– Brand name: Technical Supermarket
– Model: R14-LP-2017
– Inputs:
240VAC version with UK/IRELAND standard electric plug (three square pins).
240VAC version with AU/NZ standard electric plug adaptor (three flat pins).
220VAC version with EU/RUSSIA standard electric plug (two round pins + E).
115VAC version with USA/CANADA standard electric plug (two flat pins).
– Power – 850 Watt;
– Power cable – 2 Meter;
– Secure switch to disconnect power supply when door is open;

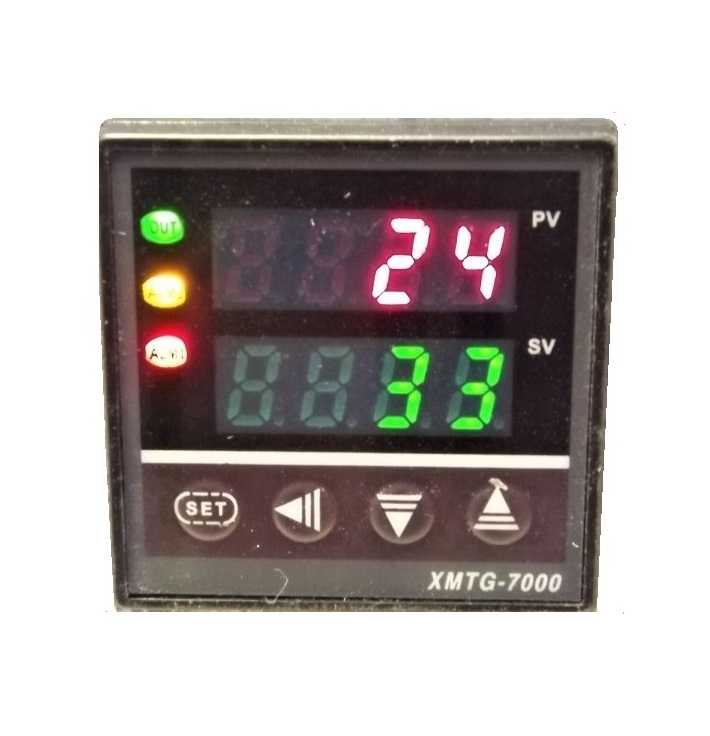

– 32-steps programmable temperature/time controller will reach and hold a required temperature as long as you need until you will change the temperature manually or switch this kiln off.
– Internal chamber dimensions in mm (Inch) – 175 (7″)W x 175 (7″)H x 140 (5.1/2″)D;
– Kiln’s dimensions in mm (inch) – 240 (10″)W x320 (13″)H x 250 (10″)D;
– Maximum heating temperature – 950 C (1772 F);
– 16 mm ventilation hole with a shutter on the door x 2;
– Estimated heating time (to 950 C/ 1772 F) – 50 minutes;
– Easy-to-use latch toggle clamp handle with a stainless steel ring;
– 25 A solid state relay;
– Bottom tile/plate 5″x5″x1/4″ (125 x 125 x 6 MM);
– Set of two tile-shelves with four muffle stands for this kiln is available separately;
– Weight – 4.2 kg.

Delivery specification:

– The R14-LP-17 kiln;
– One bottom tile-plate;
– One year manufacturer warranty;
– Downloadable Instruction manual.

Postage information:

We keep the best postage prices & services for all our customers and you will be able to see and choose anything you like BEFORE confirming your order on checkout. If you do not like these prices (services) please let us know if you know how to deliver your order to you quicker or cheaper and we will be glad to assist.

Additional information

Weight7 kg
Dimensions400 × 350 × 400 mm

Downloadable User Manual

Downloadable User Manual: R14-LP User Manual
