Description

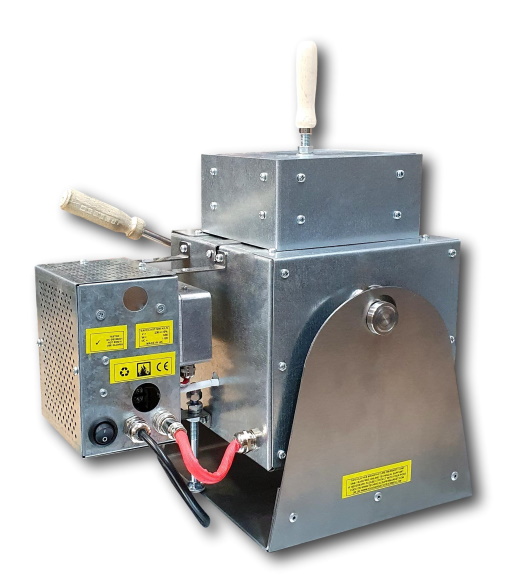

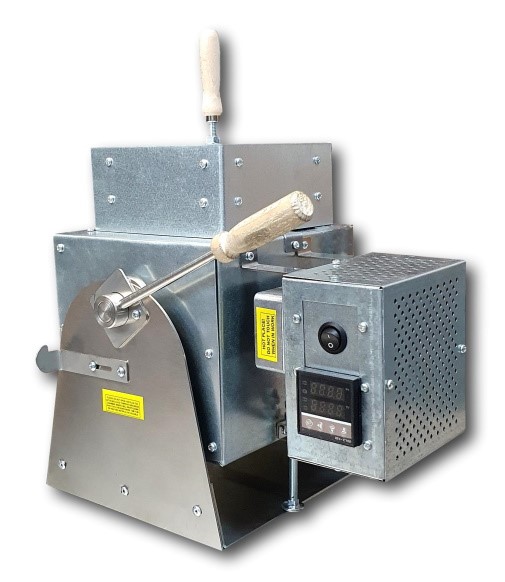

Are you looking for a professional kiln ? Then look no further because now you can buy the new iteration of our safe casting commercial graded kiln with upside-down mechanism and easy to use P.I.D controller. The kiln comes with 100-Oz (3 KG) high quality graphite crucible designed for melting down Gold, Silver, Copper, Bronze, and other many other metals. This is the right choice for a small workshop or DIY enthusiasts, The kiln is designed to be used by beginners and professionals alike.

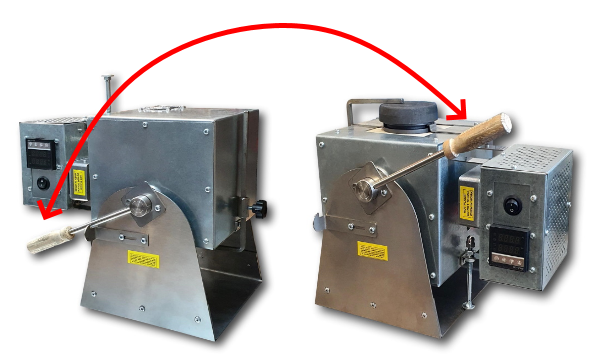

The upside-down revolutionary mechanism will make your every metal casting process effortless and, what is more important, safe. “Safecast” significantly reduces the risk of getting burned during the metal casting process Safecast 24/7 continuously heating kiln 1120c (2148 f) does not require professional knowledge or any additional equipment to start to use it from the day one. This commercial graded kiln will allow you to keep your metal hot 24/7 for multiple castings without stopping It also will reduce the risk of heat shocks, fire on your worktop, no more cracking moulds due to heat-shock and damage of heating element. (The kiln performs perfect even under high workload, It is the ideal choice if you need to have done a large quantity of work). There would be no need for the additional equipment to pre-heat your moulds before pouring the metal in.

It will help to avoid mould’s heat-shock (cracks). Apart from that, it will allow you to have more room on your worktop. Safecast will help you to save on electricity (Safecast is more efficient in terms of electricity consumption comparing to traditional electric kilns being fired at top temperatures for hours), this will also greatly reduce the risk of quick disintegration of your graphite crucibles and moulds which normally occurs on top firing temperatures. This kiln will not stay at the pre-set temperature for hours. After reaching required temperature it will then automatically cool down for about 0.5-1 minute then automatically heating up again to the settled temperature and so on. This is to eliminate any damage to the heating element and for allowing you to do tenth castings without re-heating from room temperature.

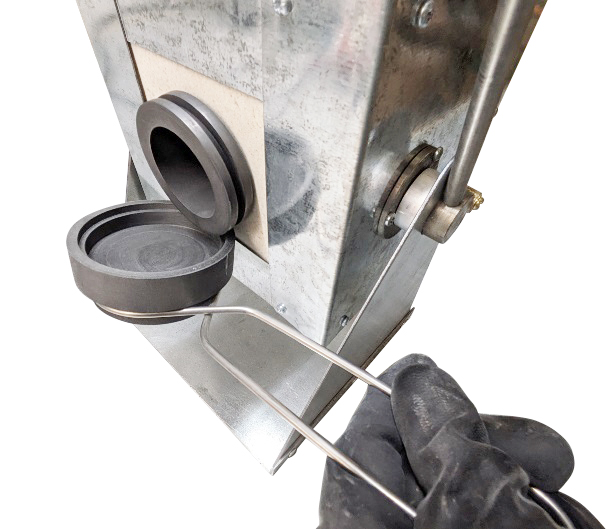

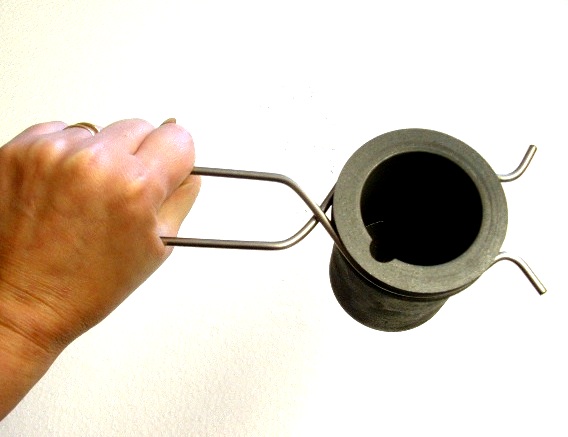

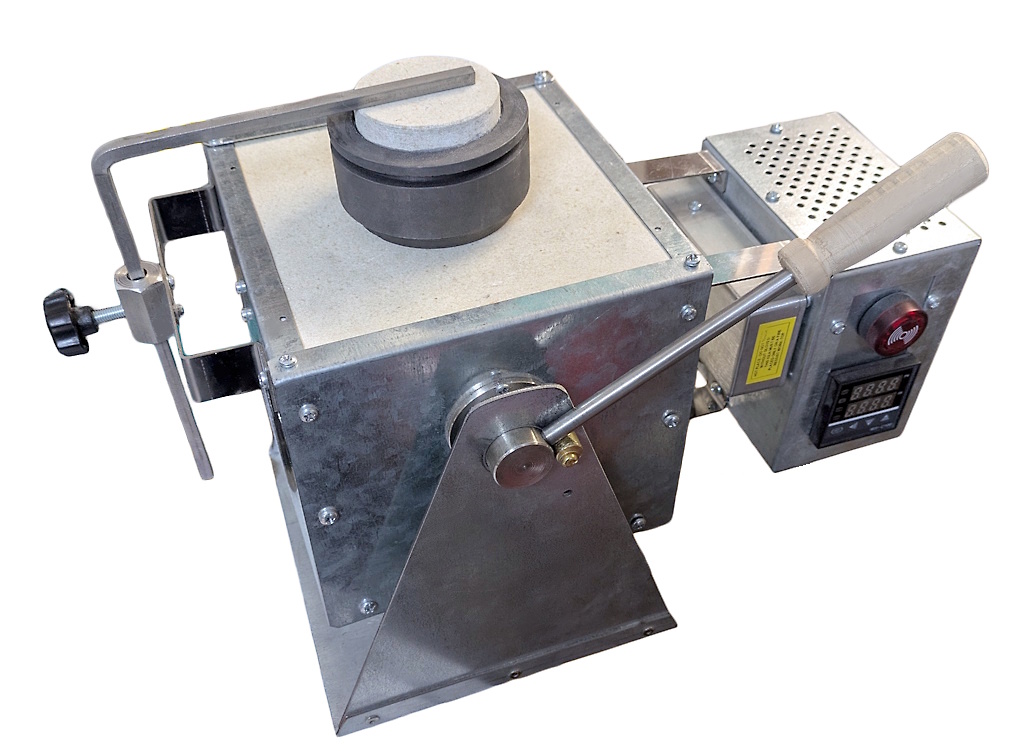

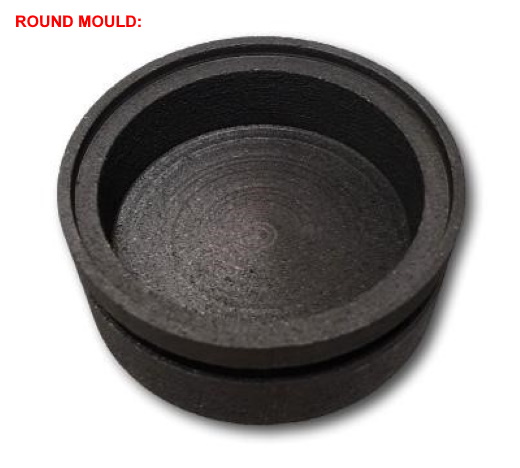

With this kiln, you can pour molten metal in mould by three ways: – traditional way: when required temperature reached, lift your crucible up from this kiln by tongs and move it to a hot mould to pour; – without lifting the crucible from kiln – just tilt your kiln to a mould (when required temperature was reached) by front handle; – most safe and economy way: fix the mould to the crucible on the top of kiln (for pre-heating purpose for avoiding mould’s heat-shock) and upside-down it for pouring all molten metal to the hot mould. ***Before placing the order, please make sure that the inner dimensions of the kiln’s chamber match your requirements. If you have any questions regarding the technical specification of the kiln, you can always contact us and our technical expert will happily provide free technical advice to help you.

Detailed Technical specifications:

– upside-down type melting kiln
– casting type: upside-down;
– Inputs: 230V+/-10% version with EU standard electrical plug (two round pins + E). 230V+/-10% version with      UK/IRELAND standard electrical plug (three square pins). 230V+/-10% version with AU/NZ standard             electrical plug (three flat pins). 115V+/-10% version with US/CA standard electrical plug (two flat pins + E)
– power: domestic, single phase, 650 watt, 2.6 a – CE, UKCA, FCC, ISO:9001 certified;
– top working temperature: 1120 c (2048 f) digitally adjustable;
– continuously working time: 24/7;
– estimated heating time to top temperature: 45–90 mins, depending on type of crucible and its condition;
– heating element protection system – yes; – standard:

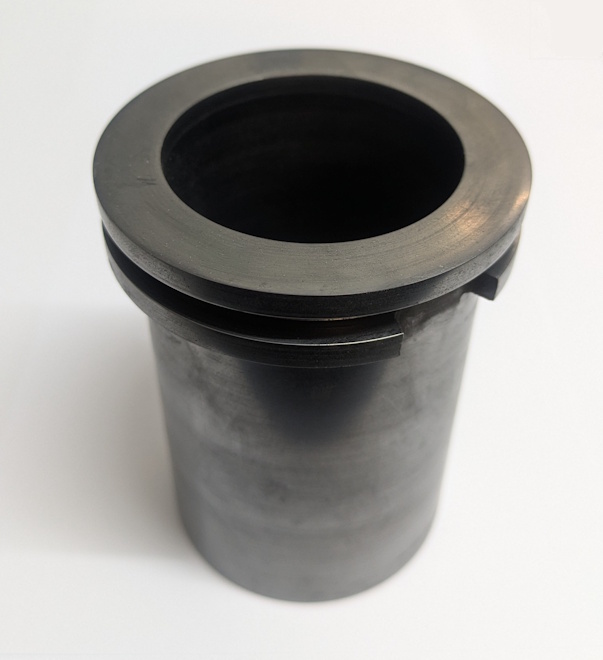

– 100-oz (3 kg) pure gold graphite crucible with internal dimensions: 50 mm diameter x 85 mm high;
– dimensions of kiln (include lid and wooden handle): 350 (wide) x 250 x 400 (high) mm;
– power cable: 1.5 meter;
– weight of kiln in box: 9 kg (14 kg in wooden box);
– one year standard manufacturer warranty;
