Description

This 1240°c (2264°f) quick-heating top-loading electrical muffle kiln with programmable touchscreen controller equipped with Wi-Fi module  and 16 cubic litres chamber was especially designed for working with ceramics, pottery, glazes and other types of materials that should be heated up to 1240°c. This kilns has 6 programs x 24 temperature/time segments (points);controller with a digital, over/low-temperature regulation secure system (for holding same temperature during the whole soaking process) and a smoothing circuit digital guard for accurate reading and stability work of the programmable controller on fluctuations of electricity that is very important option for most ceramic, glazing and pottery firing processes. Controller’s top working temperature – 1610°C (2930°F)

Technical specification:

– Brand name: Technical Supermarket (London);
– Model: RH-16L;
– Power supply: Single phase, 115V+/-10% – 230 V +/-10%, EU, UK, US or AU domestic plug on request;
– Volume of chamber: 16 Cubic Litres;
– Maximum working temperature – 1240 C (2264 F);
– Shape of chamber – Hexagon (6 corners);
– Estimated kiln dimensions in MM (inch): 450 (18″) x 500 (20″) height;
– Kiln’s front view with electrical box: 630 mm (25″);
– New empty kiln estimated heating time to 1240 C – 120 minutes;

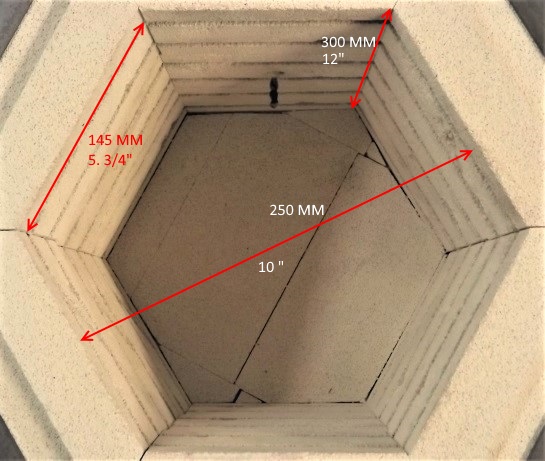

– USEFUL chamber’s dimensions in MM (inch): 250 (10″) from wall to wall x 300 (12″) height;
– Continuously working time on 1240 C (2264): 10 minutes;
– Continuously working time on 1000 C (2012 F): 6 hours;
– Continuously working time below 1000 C (1832 F): 12 hours;

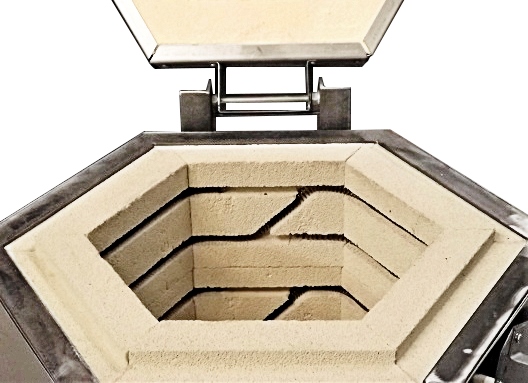

– Three heating elements around walls;
– Safety switch for disconnecting power supply from heating elements when this lid is open or closed not properly;
– Digital over/low-temperature regulation secure system;
– Possibility to find where you are now: number of step/segment and time on this step/segment;
– Smoothing circuit (controller’s stability work) digital guard;
– Industrial graded thermocouple;
– Calibrated on five points. Estimated accuracy of SOAKING temperature: +/- 1 C;
– This kiln must be positioned on a fire-resist stand or find a movable stand for it in accessories.
– Weight – 37 Kg (45 kg in wooden box);
– Cable – 2.5 M.

WHY YOU MAY WANT TO BUY OUR PRODUCTS? (WiFi Touchscreen Programmable Kiln)

Buying directly from the manufacture you have the guaranty of the best price. Our customers are also provided with full range of after-sale service for the equipment and accessories bought from us including delivery, installation by our engineers, warranty, maintenance, parts, materials.

Please feel free to contact us in case you require technical advice how to set up a program. You can also visit our other website to find out more information.

WiFi Touchscreen Programmable Kiln is equipped with the controller that provides an excellent and simple way to control a temperature variability in order to have it closely match a target value. Implementing P.I.D. control offers a way to account for error over time and allows the system to self-correct. Once the temperature exceeds or drops below the target value input in the program (temperature), the P.I.D. controller starts accumulating error. This accumulated error informs future decisions the controller makes in order to limit the overshoot in the future. This allows for a better control over the programmed temperature that is very important for most heating processes.

This touch screen / Wi-Fi / Internet programmable controller will help you to convert any basic muffle kiln into an easily contemporary controlled programmable one. You will be able then to use this kiln for pottery, glass fusing, clay works, enamelling, glazing and other works which require accurate temperature control throughout the process.

Use 4.3″ (11 cm) TFT Touch-Screen display (if not connected to Internet);
Connection type for connecting to internet: Wi-Fi, USB-2 or Ethernet;
Data login function: DATA may be exported to your devices;
Will work with any type of thermocouple;
Two alarms on any output’s type. Can connect three kilns at a time;
Outputs: SSR, relays, TRC – 20 mA;
Controller’s top working temperature – 1610°C (2930°F);
6 programs x 24 temperature/time segments (points);
Possibility to start program from any segment;
Possibility to stop program at any time;
Power-off protection system;
Screen saver;
Will work with both: Android and IOS on smartphones, PC, Laptop, Tablet, TV;
No limit on working time – can work 24/7;
Counter of completed programs (up to 9999);
Very easy to create new program or modify existing ones;
IA, Self-learning function;
Status can be viewed via Wi-Fi from multiple devices at a time;
NIST linear conversion for accurate thermocouple reading;
Inner’s temperature still will be monitored after the program will be finished;
Time scheduled START function – choose when your kiln will start program;
One-year-free programming and re-programming service on email or WA;
Five languages screen: English, Spanish, French, Italian and German;
Modern design. Last model TSWF-624;
Easy to operate and suitable for both beginners and professionals;
User manual is available on request;
Video is available on our You-tube channel on how-to-program;
Six programs can be pre-settled on request for get this kiln ready-to-use.

WiFi Touchscreen Programmable Kiln

Delivery specification:

– The RH-16L top-loaded programmable electrical muffle kiln;
– 3.2-mm wire industrial thermocouple;
– Electrical box with a touchscreen programmable controller with inbuild Wi-Fi module;
– Downloadable user manual and temperature controller instruction;
– Video on programming;
– One year manufacturer warranty;
– One year FREE online technical support on Skype, Zoom or WA.
