Description

Technical Specification:

– Inputs:
115 VAC version with a standard US/Canada electrical plug (two flat pins).
220 VAC version with EU/RUSSIA standard electrical plug (two round pins + E).
240 VAC version with UK/IRELAND standard electrical plug (three square pins).
240 VAC version with a standard AU/NZ electrical plug adapter (three flat pins).

– Model: BDK-850-SK.
– Brand: Technical Supermarket (London).
– Grade: Commercial.
– Power: 2600 Watt.
– Single phase, 13A;
– Maximum heating temperature – 850C (1562F).
– Heating time to 850 C = 60 minutes.
– Soaking time: on 850 C = 24 hours.
– Fully calibrated on 3 points: 200 C; 550 C; 820 C.
– Estimated useful chamber’s dimensions: 15” x 7” x 7”H (400 mm x 200 mm x 200 mm(H)).
– Kiln’s outer dimensions: 850 (L) x 500 (H) x 400 mm;
– Minimal time setting point = 1 Minute.
– Minimal Temperature setting point = 1o Celsius (0.1C is available on request).
– Programmer with 32 temperature/time segments/points.
– CE approved: meets all Europe/US electrical standards.
– SSR (Solid State Relay) for accuracy control of temperatures (+/- 1 C).
– NO ASBESTOS at all. MSDS on insulation material is available on request.
– Will be deliver to you with a heavy duty metal stand + plastic feet.

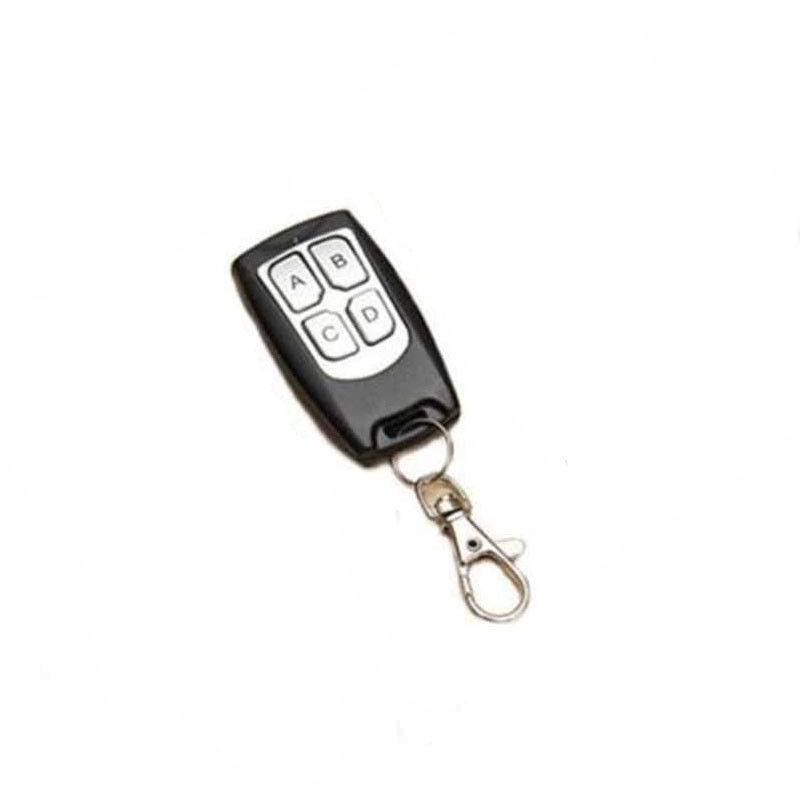

– Has remote control (transmitters) that will disconnect the microprocessor of this kiln from its power supply for avoiding unauthorized use.

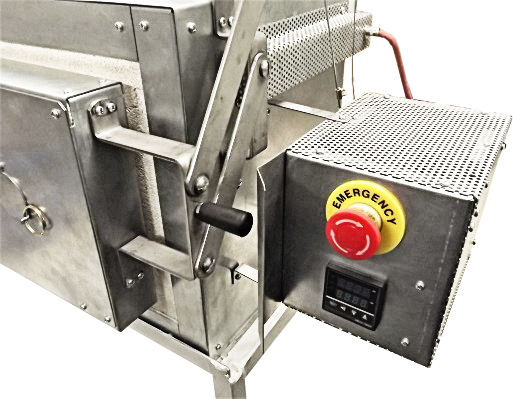

– For your additional safety this kiln has an emergency secure switch on the front panel of electrical box for disconnecting heating element/s from its power supply if required.
– Position of four heating elements – TOP.
– K-type industrial thermocouple.
– Three meter mains cable.
– Possibility to cancel all programs at one click (clean up the microprocessor’s memory for a new programs).
– Possibility to jump from one program to an other program or inside one program between point/segment.
– Possibility to abort any program at any time on any temperature point.
– Possibility to hold work on a present temperature as long as you need.
– Possibility to use this temperature programmator as a simple PID controller.
– Possibility to track each heating process and to save all programs on a PC/Laptop if you have a software, dongle and RS485-USB adaptor (supplied separately).
– Need your own program? Send to us the required temperatures/time setting and we will programming this microprocessor for you free of charge and send it to you ready-to-use kiln.
– IMPORTANT: Free-for-first year re-setting of the microprocessor for your new projects (new programs) – on-line or via email: use this service as often as you like without any restriction.
– Laser based air extractor system, heat resist IFR camera and/or PC/Laptop RS-485-USB adapter with PC soft (to connect a PC/Laptop) are available for an additional charge on request.
– Two years full manufacturer warranty.
– All after-warranty services worldwide include part-by-post.
– Made in UK (London)
– Weight – 49 kg.

Attention: You’ll require a screw-driver and basic technical knowledge for fixing to this kiln its electrical box, arm and few other items.

Delivery specification:

– The BDK-850-SK kiln;
– Transmitter for remote control;
– Two year manufacturer warranty;
– Heavy duty metal stand with a door-motor.
– WA Free-for-one-year online technical support include re-setting (programming);
– Downloadable User manuals by email.
