Description

THIS HIGH-QUALITY, TABLE-TOP PROGRAMMABLE MUFFLE KILN IS EQUIPPED WITH AN EASY-TO-PROGRAM 32-SEGMENT TEMPERATURE/TIME CONTROLLER, ALLOWING PRECISE REGULATION OF BOTH HEATING AND COOLING RATES FOR A WIDE VARIETY OF FIRING AND HEAT-TREATMENT PROCESSES.

Designed for ease of use, this kiln does not require extensive technical knowledge to operate and is suitable for both beginners and experienced professionals. Its versatile design makes it ideal for home workshops, studios, educational environments, and small-scale professional applications.
The kiln can be used with a broad range of materials and processes, including glass, clay, ceramics, porcelain, wax, stone, precious metal clay (PMC), metals, wood, enamelling, glazing, and many other heat-treatment applications, provided that the required operating temperatures are within the kiln’s specifications. For improved process control, the kiln is fitted with a 32-segment programmable controller, enabling users to create complex firing schedules consisting of multiple heating, soaking, and cooling stages. This allows accurate and repeatable results across a wide range of materials. To ensure reliable and consistent performance, the controller incorporates also an advanced over/under-temperature regulation system, which maintains stable temperatures throughout the soaking process. In addition, an internal digital smoothing circuit and electrical noise protection system help provide accurate temperature readings and stable controller operation during fluctuations in the electrical supply. These features are particularly important for processes requiring precise temperature control, such as glass fusing, ceramic firing, enamelling, glazing, and precious metal clay work.

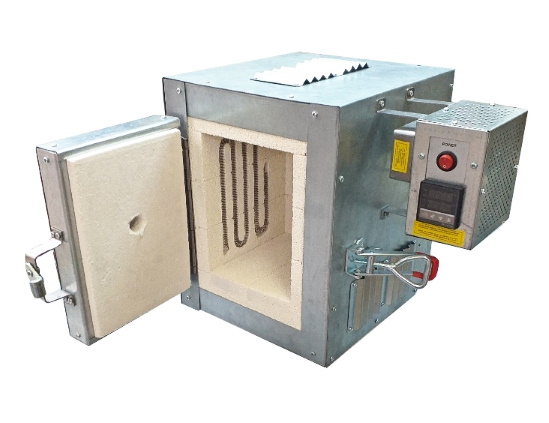

The kiln also features a ventilation port with a stainless-steel shutter integrated into the door, allowing controlled ventilation when required during firing cycles.

Combining professional-grade performance, ease of operation, and versatile programmability, this kiln is an excellent choice for artists, hobbyists, jewellers, craftspeople, schools, laboratories, and small production workshops seeking reliable and accurate firing results.

Technical Specification:

– BRAND: Technical Super Market (London);
– MODEL NAME (SKU): “R-6L”;
– INPUT: Domestic USA 115/220 V(60 Hz) or 230 V +/-10% rest of the World on request;
– POWER: Single phase, 9A, 2150 Watt;
– CE, UKCA, CSA, FCC, CPSA, ISO:9001 certified;
– TOP WORKING TEMPERATURE: 1240 C (2264 F).
– TEMPERATURE REGULATION: 32-step (temperature/time) programmable controller;
– CHAMBER VOLUME: 6 L;
– ESTIMATED heating time to top temperature: 180 mins;
– MAXIMAL SOAKING TIME ON TEMPERATURES HIGHER THEN 1200 C: 20 mins;
– SOAKING ACCURACY: +/- 1 C;
– CALIBRATED on 5 points;
– DIMENSIONS OF KILN: 36 x 43 x 36(H)CM (14″ x 17″ x 14″ High);
– THE INTERNAL CHAMBER DIMENSIONS: 15 x 20 x 21(H) CM or 6″ x 8″ x 8.1/4″ (High);
– POWER CABLE: 1.5 meter;
– WEIGHT OF THE KILN: 20 kg;
– WILL BE DELIVERED to your door in a MDF/Wooden crate;
– ONE YEAR standard manufacturer warranty;
– MADE IN UK (London).
