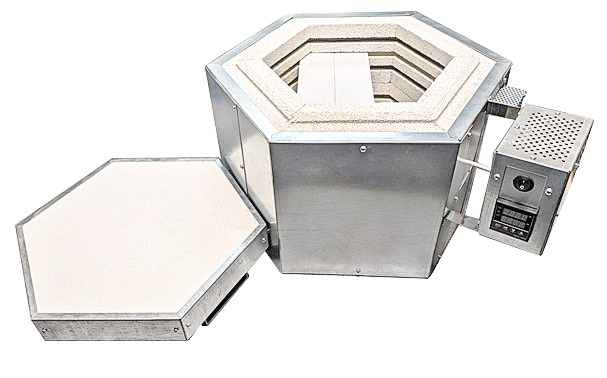

ABOUT OUR TOP-LOADED PROGRAMMABLE ELECTRICAL KILN

PROFESSIONAL, 10 L CHAMBER, TOP-LOADED ELECTRICAL MUFFLE KILN WITH A 32-SEGMENT PROGRAMMABLE TEMPERATURE/TIME CONTROLLER WAS ESPECIALLY DESIGNED FOR WORK WITH GLASS, CLAYS AND ENAMELS BUT CAN BE USED ALSO FOR ANY OTHER PURPOSE WHEN REQUIRED TOP TEMPERATURE IS BELOW 1100 C.

THIS KILN HAS 32-SEGMENTS (TEMPERATURE-TIME) PROGRAMMABLE CONTROLLER WITH INTERNAL OVER/LOW-TEMPERATURE REGULATION SYSTEM (FOR HOLDING SAME TEMPERATURE DURING THE WHOLE SOAKING PROCESS) AND A SMOOTHING CIRCUIT DIGITAL GUARD FOR ACCURATE READING AND STABILITY WORK ON FLUCTUATIONS OF ELECTRICITY THAT IS VERY IMPORTANT OPTION FOR MOST MATERIALS SUCH AS GLASS, CERAMIC AND PORCELAIN.

TECHNICAL SPECIFICATION:

– Brand name: Technical Supermarket (London);
– Made in UK (London);
– Model: STUDIO-24;
– Power supply: single phase, 115V+/-10% or 230V +/-10% with many type mains plug on request – please see picture;
– Power – 2200 Watt;
– Volume of chamber: 10 L.
– Maximum working temperature – 1100 C (2012 F);
– Kiln dimensions with electrical box in MM (inch): 530 (21″) wide x 400 (16″) x 350 (14″) height;
-Estimated heating time to 1100 C – 150 minutes;
– Chamber’s dimensions in MM (inch): 250 (10″) diameter x 200 (8″) height – please see an image;
– 32 time/temperature segments on 2-line programmable temperature controller that will allows you AUTOMATICALLY reach, hold (soak) and change up to 32 temperature/time points;
– Two heating elements around all walls;

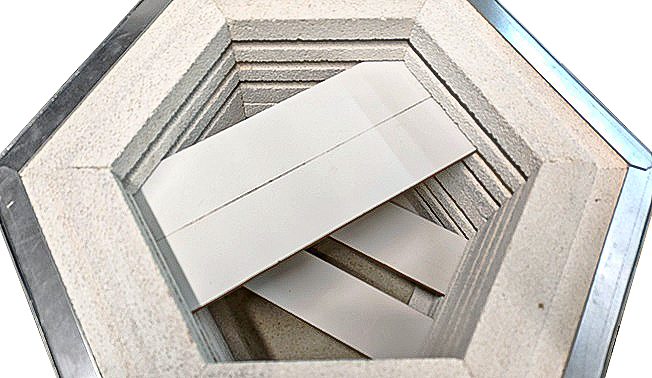

– Supplied with two tile-shelves that can be insert into kiln’s walls groove in any position. Please see pictures;
– Digital over/low-temperature regulation secure system;
– Smoothing circuit (controller’s stability work) digital guard;
– Movable lid with two handles as supports;
– Industrial graded K-thermocouple;
– Calibrated on five points. Estimated accuracy of SOAKING temperature: +/- 1 C;
– You will require a standard screw-driver to fix electrical box with temperature controller and a thermocouple to this kiln by few screws (supplied).
– Weight – 29 Kg (35 kg in wooden box);
– Cable – 2.5 M;
– One year manufacturer warranty + parts-by-post service;
– One year FREE online (Skype, WA, Zoom) technical support or/and re-programming service.

WHY YOU MAY WANT TO BUY OUR TOP-LOADED PROGRAMMABLE ELECTRICAL KILN

Buying directly from the manufacture you have the guaranty of the best price. Our customers are also provided with full range of after-sale service for the equipment and accessories bought from us including delivery, installation by our engineers, warranty, maintenance, parts, materials.

Please feel free to contact us in case you require non-standard custom size & design. You can also visit our main website to find out more information.

WE DELIVER ALL OUR PRODUCTS WORLDWIDE 24/7

We deliver all our products all over the world (and have been since 2004) and therefore we have vast experience in professional packaging, to keep a high level of customer satisfaction we insure that every product is packed to a professional standard. Furthermore in the highly unlikely event, of parcel being damaged in transit we offer a replacement at no extra cost!
