Description

INTRODUCTION:

This table-top muffle kiln with 20 x 20 x 20 cm cubic chamber (inner) and top temperature of 1300 C/2372 F has Touch Screen, Wi-Fi programmable temperature/time controller with build in an air extraction or air circulation systems (please specify the required system on order). This kiln was especially designed for laboratories and schools… Easy-to-use and professional.

TECHNICAL SPECIFICATIONS:

Brand name: Technical Super Market;
Model name: CUBE-1300;
Power supply: Single phase, 115V+/-10% or 230V+/-10% on request;
Power: 12A, 2900 Watt;

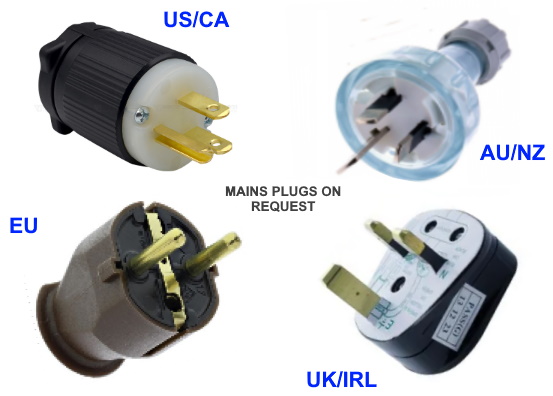

Domestic electric plug type: UK, EU, USA or AU on request;
Internal chamber dimensions: 20 x 20 x 20 cm (8 x 8 x 8 inches);
Dimensions of the kiln with control box (but without hoses): 36 x 36 x 65(high)cm (15 x 15 x 26 inches);
Movable (4 wheels);

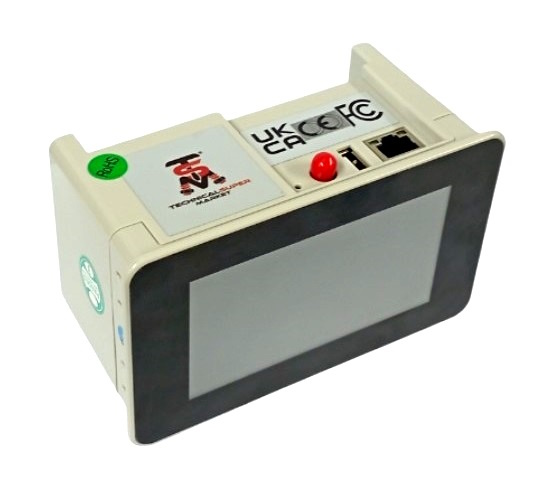

This Touch-Screen Programmable temperature/time controller with 4.3″ (11 cm) touch-screen and with Wi-Fi option will allow you to operate this kiln from the touch-screen, any type of smartphone, PC, Laptop, TV and all other devises with Wi-Fi point. Easy to operate and suitable for both beginners and professionals. Please find more information about it below:

– Memory: 6 programs up to 24 temperature/time segments each;
– Connection type for connecting to internet: Wi-Fi, USB-2 or Ethernet;
– Data login function: DATA may be exported to your devices;
– Will work with any type of thermocouple;
– Three alarms on any output’s type. Can connect three kilns at a time;
– Outputs: SSR, relays, TRC – 20 mA;
– Controller’s top working temperature – 1300 C (2372 F);
– Possibility to start program from any segment;
– Power-off protection system;
– Screen saver;
– Counter of completed programs (up to 9999);
– Very easy to create new program or modify existing ones;
– IA, Self-learning function;
– NIST linear conversion (for accurate thermocouple reading);
– Inner’s temperature still will be monitored after the program will be finished;
– Time scheduled START function – choose when your kiln will start program;
– One-year-free programming and re-programming service on email or WA;
– Modern design. Last model TSWF-624;
– All six programs can be pre-settled on request for get this kiln to your door ready-to-use;

Supplied with set of two ceramic shelves with four muffle stands;
For bottom of chamber – supplied with a mosaic set of ceramic pieces for avoiding contact between the bottom and firing object/s;
Weight of the kiln: 30 kg;
One year standard manufacturer warranty with free online technical support (WA, Teams, Zoom);
Downloadable User manuals and video on work with programmable controller;
Made in the UK.
